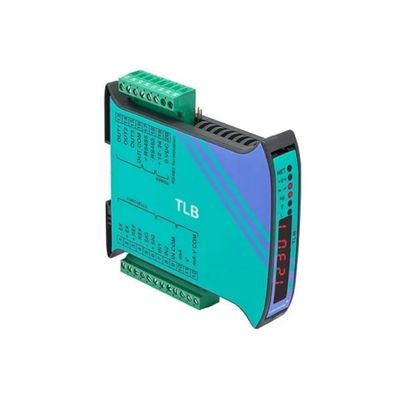

Load Cell Systems - Model TLB RS485 -Weight Transmitter

Load Cell Systems offers the TLB din-rail or panel mounted load cell transmitter,  optional analog output current: 0-20 A, 4-20mA and voltage: +/-10V, +/-5V.  Standard wtih RS485 digital output (Modbus RTU / ASCII protocol) for communications with a PLC or remote display.  The 5V excitation can drive up to 8 (350Ω) load cells through a junction box.  The TLB is ideal for system integrators, the din-rail mounted device is compact taking up little room in electrical panels.  The Fieldbus options allows communications to large industrial networks.
