ADVANTAGE - Model HLPS -Load Point System

The Hardy HI HLPS Hermetic Load Point System is designed to provide accurate output in the most demanding applications. The load sensor performance exceeds IP68 and NEMA 6 Standards for Wash Down Resistance. The HI HLPS Free Sliding Load Point System is designed for use on medium capacity vessels. The pre-assembled Free Sliding Load Point System consists of three (3) different low profile mount types specifically designed to eliminate the effects of unwanted forces and resulting in exceptional load measuring accuracy.

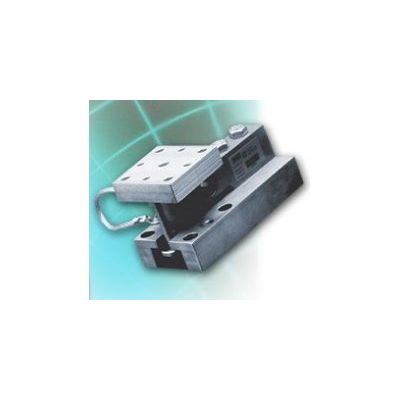

Each load point consists of a stainless steel load sensor which is truly hermetically sealed (gauge area and cable entry), Enhanced C2® Electronic Calibration, matched mV/V and mV/V/Ohm and a 1/4 inch conduit adapter. The load points are pre assembled at our factory eliminating any assembly in the field. Each load point is fitted with a grounding strap and anti-lift off protection. The load points mounting hardware is available in either stainless or galvanized steel.

The HI HLPS is available in the following standard capacities: 1,125 lbs, 2.25K lbs, 4.5K lbs, 11.25K lbs, 22.5K lbs and can be purchased as individual load points or in three or four leg systems.

• Rated Output (F.S.): 2 ±0.002mv/v
• Non-Linearity: < ± 0.018 %R.O.
• Hysteresis: < ± 0.025 % R.O.
• Zero Balance: < ± 1.0 % R.O.
• Creep @ 5 Min.: < ± 0.010 % R.O.
• Temp Effect Output: < ± 0.0012 % R.O/C.
• Temp Effect Sensitivity: < ± 0.0010 %/C.
• Input Resistance: 1106 ± 5 ohm
• Output Resistance: 1000 ± 1 ohm
• Insulation Resistance: >5000 Mohm
• Excitation: 5 - 15 vdc
• Safe Load Limit: 200 % Emax
• Ultimate Load: 300 % Emax
• Safe Side Load: 100 % Emax
