Products and Equipment from Hardy Process Solutions

Hardy - Model Dynamic Series - Check Weigher

Hardy's Dynamic Series of checkweighing machinery is built using off-the shelf components, with controls based on a Rockwell Automation's Logix platform, providing a standardized open source architecture that is flexible enough to meet both current and future control needs. Weight processing is managed by Hardy’s HI 4050CW weight controller. Sampling weight data at 4,800 times per second, the HI4050CW is capable of providing enough weighments to...

Hardy - Model HI 4050CW - Check Weighing System

The high speed HI 4050CW check weighing system can process up to 250 high resolution (1:30:000) weight measurements per second. The 4050CW consists of a special version of the HI 4050 weight controller connected to up to four analog load cells and a Hardy junction box. The HI 4050CW is perfect for building new systems for either static or dynamic check weighing or retrofitting the weight electronics of older, less reliable systems. The 4050CW breaks...

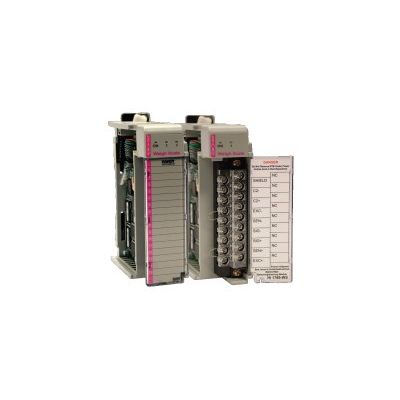

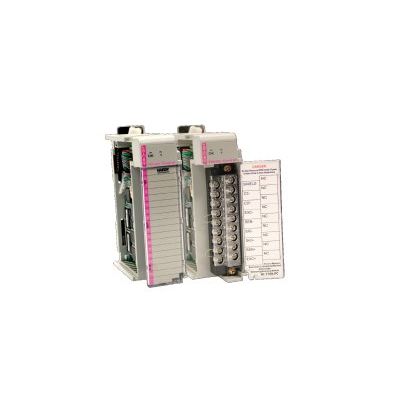

CompactLogix - Model HI 1769-WS and 2WS - Single Channel PLC-Style Weigh Scale Modules

Hardy HI 1769-WS and -2WS are single channel PLC-style weigh scale modules for use with the Allen-Bradley MicroLogix 1500 and CompactLogix controllers.

CompactLogix & MicroLogix - Model HI 1769-FC - Weigh Feeder

The HI 1769-FC Feeder Control module automatically calculates and adjusts tuning parameters typically required to maintain desired flow rates in a dispensing or filling system. It is a microprocessor-based CompactLogix and MicroLogix 1500 plug-in module used with the PLCs Rack I/O in a variety of material-flow applications, such as auger, belt, and vibration-based feeders. It can be operated in batch, automatic, or manual mode.

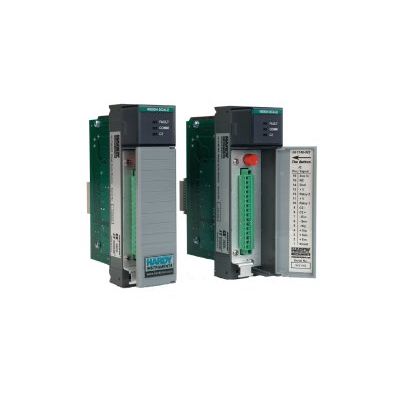

Hardy - Model HI 1746-WS - Weighing Scale Module

The HI 1746-WS Weigh Scale Module is a self-contained microprocessor-based I/O module with control inputs and outputs. The HI 1746-WS is designed to be easily plugged into the back plane of an Allen-Bradley SLC 5/02, 5/03, 5/04 or 5/05 programmable controller. The HI 1746-WS supports a wide variety of process weighing applications such as batching/blending, filling/dispensing, check weighing, force measurement, level by weight and weight...

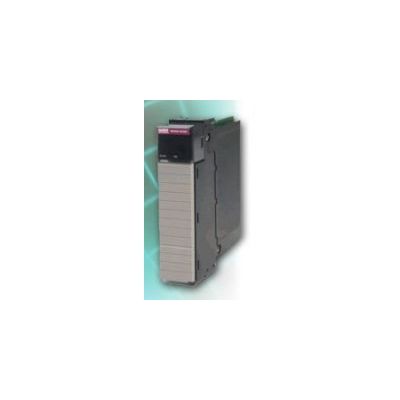

ControlLogix - Model HI 1756-WS - Single Channel PLC Plug-In Weigh Module

Hardy’s HI 1756-WS is a single slot, single scale, weigh scale module that mounts in an Allen-Bradley ControlLogix® local or remote Chassis. It reads weight and diagnostic data from strain gauge load sensors or load cells and communicates this data over the I/O chassis Backplane to the ControlLogix Processor. The HI 1756-WS module reduces installation costs, since no external stand-alone scale instrument with a wired communications link to...

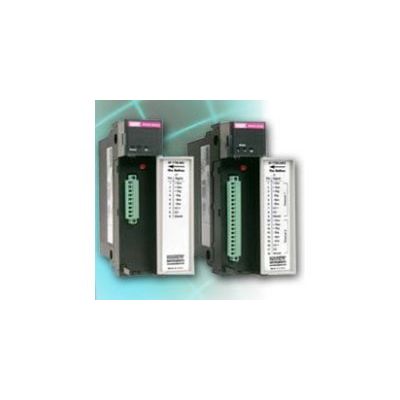

ControlLogix - Model HI 1756-2WS - Dual Weighing Scale Module

Hardy’s HI 1756-2WS is a single slot, dual scale, weigh scale module that mounts in an Allen-Bradley ControlLogix local or remote Chassis. It reads weight and diagnostic data from two separate sets of strain gauge load sensors or load cells and communicates this data over the I/O chassis backplane to the ControlLogix Processor. The HI 1756-2WS module reduces installation costs, since no external stand-alone scale instrument with a wired...

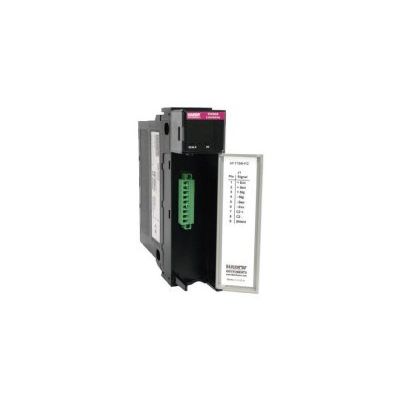

ControlLogix - Model HI 1756-FC - Weigh Feeder Control Module

Used in new applications, or to retrofit volumetric feeders or replace outdated controllers in gravimetric systems, the singlescale HI 1756-FC weigh feeder control module mounts directly into your Allen-Bradley ControlLogix chassis. By using the PLC rack I/O, it can control many feeding devices, such as auger, vibratory and belt-based feeders, as well as your proprietary designs.

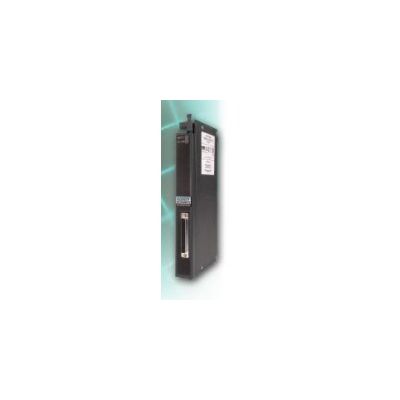

Model HI 1771-WS - Single Slot Weigh Scale Module

The only weigh scale module specifically designed to work directly with Allen-Bradley Series 5 PLCs. Hardy Instruments' HI 1771-WS Weigh Scale Module, Series B reads weight data from strain gauge load sensors or load cells. It then conditions and digitizes this data 20 times per second with over one million counts of resolution over a differential signal range of 0 - 30mV. Next it transmits (block-transfers) the selectable Net, Gross, Tare and...

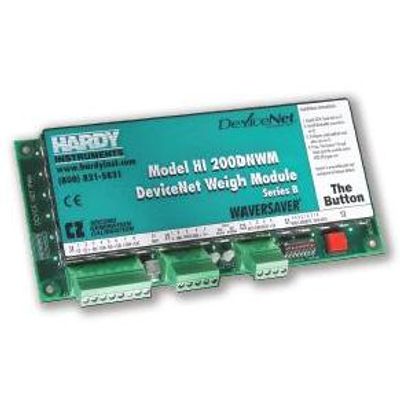

DeviceNet - Model HI 200DNWM - Weigh Module

Hardy's HI 200DNWM is the first general purpose weigh module designed specifically to the DeviceNet open network standard, and the first to pass conformance testing at one of ODVA's independent laboratories. This instrument provides power for up to four, 350 ohm, standard strain gauge load cells, load sensors and load points.

Model HI 3010 - Filler / Dispenser Controller

One of a series of application-specific process weighing controllers featuring a built-in web server and interfaces with Ethernet/IP, ControlNet and DeviceNet. Whether filling or dispensing solids, liquid or gases, the Hardy Filler / Dispenser automates your entire process. The HI 3010 achieves accurate and repeatable results, not only through the use of our core weight control technologies, but also because it controls, monitors, and tunes the entire...

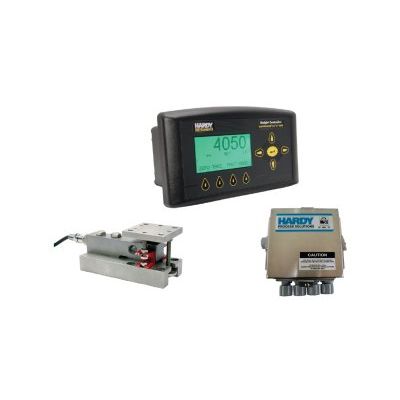

Model HI 4050 - Weight Controller

This weight controller / weight indicator acts as a front end to a PLC, PC or DCS system for most weighing applications, or as a stand-alone for simple control or weight monitoring.

Model HI 2151/30WC - Weight Controller

The controller is used for a wide variety of process weighing applications including batching, blending, check weighing, filling/dispensing, force measurement, level by weight and weight rate monitoring. As a stand-alone product ,the HI 2151/30WC can control as many as eight set point relays, and transmit data via analog, serial and BCD communications. Data is displayed alpha-numerically on the six digit fourteen segment LED display and graphically on...

Model HI 3030 - Multi-Scale Weight Controller

The Multi-scale weight controller can act as a front end to a PLC/PAC, PC or DCS system for applications such as level, batching, filling, dispensing, and check weighing, or as a stand alone for simple control or weight monitoring.

Model HI 2110-WI - Weight Indicators With PLC Network Communications

The HI 2110WI is a compact, multi-purpose, microprocessor based weight Indicator. The indicator is used for a wide variety of process weighing applications including batching, blending, check weighing, filling/dispensing, force measurement, level by weight and weight rate monitoring.

Model HI 4060 - Loss-In-Weight Rate Controller

Hardy's HI 4060 is a compact, single-feeder, closed-loop rate controller for use in a variety of applications, including auger, belt and vibratory-based feeders, converting them from volumetric to gravimetric.

Model HI 2204 - Strain Gauge Weight Transmitter

The Hardy HI 2204LT comes sealed and potted to withstand typical industrial environments. It has a course zero offset adjustment to remove dead load, a fine zero adjustment to compensate for small differences between load cells/ points, and a span adjustment to set the operating range for the “live load.”

Model HI 2201LT - Weight Transmitter

The Hardy HI 2201LT comes sealed and potted to withstand typical industrial environments It has a course zero offset adjustment to remove dead load, a fine zero adjustment to compensate for small differences between load cells/ points, and a span adjustment to set the operating range for the “live load.”

ANY-WEIGH - Bench Scales

Hardy's ANY-WEIGH Bench Scales can be used for general check weighing or filling applications, placed under a feeder for loss-in-weight rate control, or for general Quality Assurance (QA) laboratory work. ANY-WEIGH Bench Scales are resistant to moisture with a stainless steel top, powder coated steel base, and conformal-coated internal circuitry. However, they are not intended for immersion in liquids or severe wash-down applications.

ANY-WEIGH - Floor Scales

The HI AFS Series of floor scales can be used for general process (mount a machine or vessel to it) pallet, drum, or shipping weighing applications. They feature a rugged structural rib design with a ¼ inch thick steel smooth or diamond plate deck that can withstand over loads of up to 150% of their capacity. Their low height of three inches and 100% end loading allow the easy access and maneuvering of all types of load handling equip met such...

Enviro - Washdown Checkweigher And Bench Scales

Washdown IP69K rated checkweigher and bench platform scales are used for sanitary weighing applications. Hardy's Enviro checkweigher bench scales meet the need for sanitary checkweighing electronics that withstand high-pressure, high-temperature washdown environments. Versatile enough for use in various food and chemical applications, the Enviro's sanitary design, commercial approval, washdown rating and easy-to-use front-panel checkweighing functions...

ADVANTAGE - Load Points-LPB

Each ADVANTAGE load point consists of a choice of stainless or galvanized steel mounting hardware and a stainless steel mV/V and mV/V/ohm matched load sensor with true hermetic sealing, C2 Second Generation Calibration capabilities, on-board electronic certs, a ¼ NPT conduit adapter and ten feet of cable.

ADVANTAGE - Load Points-HLPS

Each ADVANTAGE line HI HLPS Series load point consists of a stainless steel load sensor with true hermetic sealing, C2 Electronic Calibration capabilities, a 1/4 NPT conduit adapter and 20 feet of cable. Each pre-assembled, low profile load point system, provides anti-lift off protection and consists of three mount types specifically designed to eliminate the effects of unwanted forces to provide exceptional accuracy. A grounding strap and fixed color...

ADVANTAGE - Load Points-LPRA

The new Hardy HI LPRA low profile, rocker load point assembly is designed for use on high capacity vessels. Each ADVANTAGE line load point consists of a stainless steel, rocker type matched load sensor with true hermetic sealing, C2 Second Generation Electronic Calibration capabilities and a 1/4 NPT conduit adapter.

ADVANTAGE - Load Points-LPRC

Each ADVANTAGE Series load point consists of galvanized steel mounting hardware and a stainless steel mV/V & mV/V/ohm matched load sensor with true hermetic sealing, C2 Second Generation Calibration capabilities, on-board electronic certs, a ¼ NPT conduit adapter and thirty feet of cable.

DVANTAGE - LITE Load Points

The Hardy Instruments ADVANTAGE LITE series of load point assemblies provides superior performance when compared to common load cells, as well as exceptional value, in meeting your weighing needs.

DVANTAGE - Load Points-HLPT

Each ADVANTAGE line load point consists of a stainless steel, load sensor with true hermetic sealing, and C2 Electronic Calibration capabilities. The hardware comes in either stainless or galvanized steel with a grounding strap which helps protect the load sensor from stray ground currents and electrostatic charges. The HI HLPT is available in the following capacities: 225 LB, 450 LB, 1,125 LB, 2.25 KLB, 4.5 KLB, and 11.25 KLB. replace Hardy's HI LPT...

C2 - Standard Junction Box

The Hardy C2 certified Junction Box contains circuitry in a waterproof enclosure which distributes the excitation voltage to up to four load points and transfers each load point’s performance characteristics and weight signals to the weight controller. The box’s unique removable multiple connector design allows for easy isolation and troubleshooting of non-“IT” capable weighing systems. Two junction boxes can be cabled together...

IT - Junction Box

The Hardy C2 certified Junction Box contains circuitry in a waterproof enclosure which distributes the excitation voltage to up to four load points and transfers each load point’s performance characteristics and weight signals to the weight controller. The junction box, without being opened, allows an instrument operator to switch in an internal test circuit to test the stability of the cable from the junction box to the “IT”...

Hardy C2 - Cable

Hardy's C2 certified cable is designed specifically to handle the low voltage weight and data signals found in weighing systems, as well as the load sensors performance characteristics and switching commands.

Model HI 2160RCPlus - Rate Controller Loss-In-Weight

The HI 2160RCPlus rate controller is being phased out and replaced by the more powerful, feature-rich HI 4060 rate controller. The HI 2160RCPlus rate controller is a compact, single ingredient Loss-in-Weight controller for use in a variety of applications, including auger, belt, pump and vibratory based feeders.

Bulk Bag

Intermediate Bulk Containers (IBC) can contain solids or liquids and can be soft or hard sided (totes) Material is usually dispensed from them in a Loss-in-weight application.

Check Weighing

Check weighing can be used for a wide variety of applications including verifying package contents, checking product tolerances, identifying parts, classifying product and checking for overload safety.

Filling

Whether you are working with solids, liquids or gases, weighing provides accurate and repeatable results. Filling consists of putting material on or into the scale as a gain-in-weight process. The container receiving the material ranges from small cans, bottles or bags to silos, trucks, railroad cars or ships.

Dispensing

Whether you are working with solids, liquids or gases, weighing provides accurate and repeatable results. Dispensing consists of taking material off or out of the scale as a loss-of-weight process. The dispensing of Intermediate Bulk Containers is also associated with loss-of-weight systems. The container receiving or providing the material ranges from small cans, bottles or bags to silos, trucks, railroad cars or ships.

Level Control

Using Weight to Measure Level Measuring Level or Inventory by weight is the most accurate technology. The weight is not affected by ingredients that foam or settle unevenly, by changes in density or the shape of the tank. Weight is weight, regardless of percent solids, bridging, rat holing, or whether your ingredient is conductive or sound absorbing. Because weighing is a non-contact method of measuring level, there is no chance of contamination. You...

Loss-In-Weight Rate Control

Rate by weight is the measurement of an amount of a material which enters into or is dispensed from a vessel over a given period of time. Solids, liquids, or gases can be monitored or precisely controlled using screw- or auger-based feeders, vibratory feeders, conveyors, belt feeders, augers, variable valves and pumps.

Force Measurement

In addition to measuring the gravimetric force of weight, Hardy's systems can measure non-gravimetric forces in a wide variety of applications like controlling tension, determining the breaking point or hardness of a material, force testing and overload warning. Weight can be used to measure mechanical forces in any direction.

Other Applications

Hardy Process Solutions provides technology solutions to a large variety of process weighing application needs.
