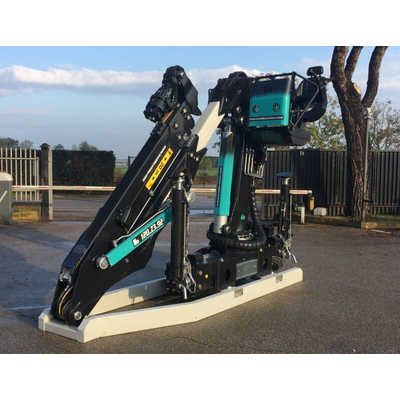

Icarbazzoli - Model IB 120-150.Z3.92 -Loaders for Truck and Chipper

Net load moment: 96 KNm: 138 KNm. Net rotation torque: 28 KNm: 30 KNm. Rotation angle: 425˚: 425˚. Maximum reach: 9.20 m: 9.20 m. Operating pressure: 240 Bar: 240 Bar. Recommended pump flow rate: 1x90 Lt/min, 2x70 Lt/min: 1x100 Lt/min, 2x80 Lt/min. Loader\Crane weight (excluding terminal equipment): 2700 kg: 2800 kg.
