Icarbazzoli - Model IB 120-150-1Z1.83 -Loaders for Truck and Chipper

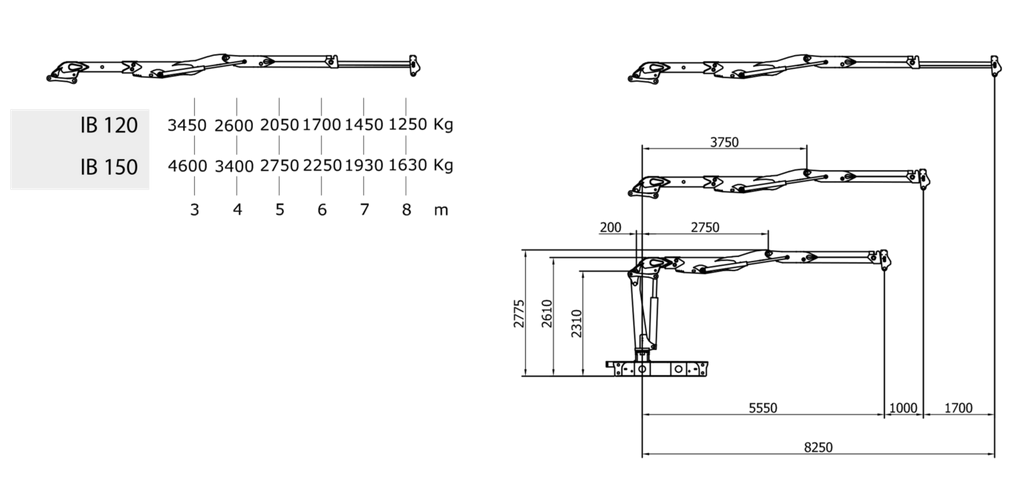

Net load moment: 101 KNm: 130 KNm. Net rotation torque: 28 KNm: 30 KNm. Rotation angle: 425˚: 425˚. Maximum reach: 8.30 m: 8.30 m. Operating pressure: 240 Bar: 240 Bar. Recommended pump flow rate: 1x90 Lt/min, 2x70 Lt/min: 1x100 Lt/min, 2x80 Lt/min. Loader\Crane weight (excluding terminal equipment): 2700 kg: 2750 kg.
