Icarbazzoli - Model IB 120.Z94 - Loaders for Truck and Chipper

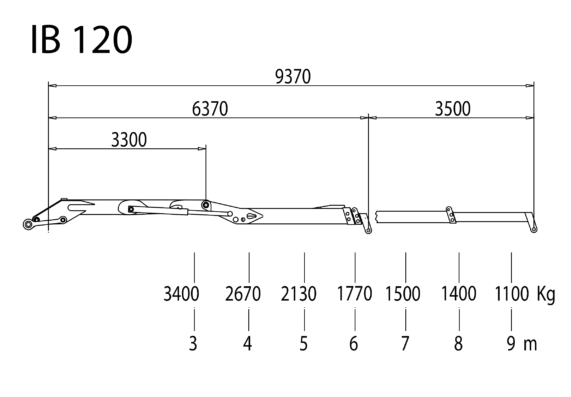

Net load moment: 105 KNm. Net rotation torque: 28 KNm. Rotation angle: 425˚. Maximum reach: 9.40 m. Operating pressure: 240 Bar. Recommended pump flow rate: 1x90 Lt/min, 2x70 Lt/min. Loader\Crane weight (excluding terminal equipment): 2300 kg.
