Icarbazzoli - Model IB 120-150.1L1.75 -Loaders for Truck and Chipper

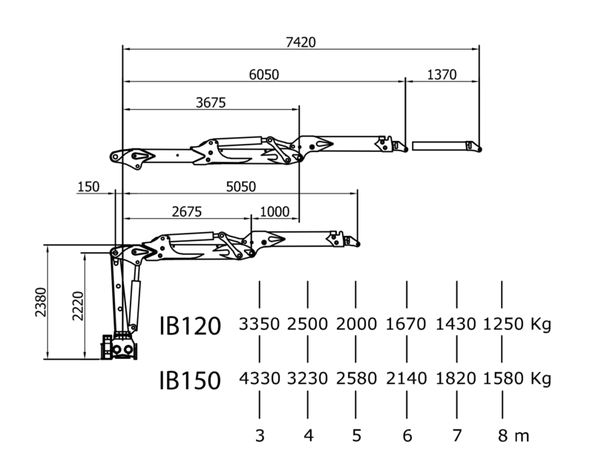

Net load moment: 101 KNm: 130 KNm. Rotational torque (net): 28 KNm: 30 KNm. Rotation angle: 425°: 425°. Maximum reach: 7.50 m: 7.50 m. Operating pressure: 240 Bar: 240 Bar. Recommended pump flow rate: 1x90 - 2x70 Lt/min: 1x100 - 2x80 Lt/min. Loader weight (excluding terminal equipment): 2700 kg: 2750 kg.
