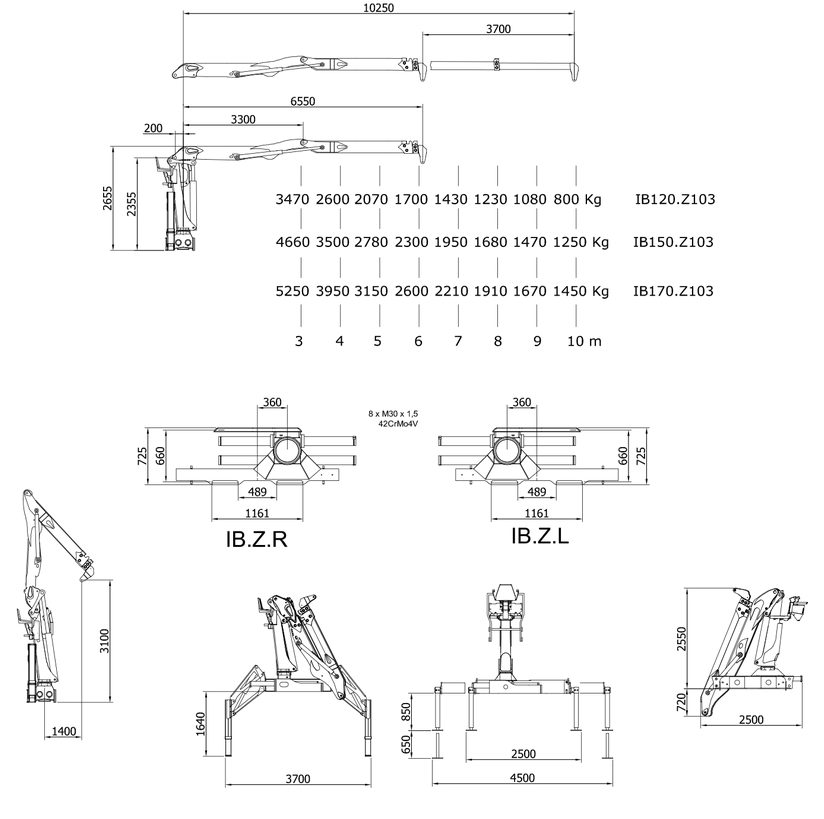

Icarbazzoli - Model IB 120-150-170.Z103 -Loaders for Truck and Chipper

Net load moment: 104 KNm: 140 KNm: 158 KNm. Net rotation torque: 28 KNm: 30 KNm: 32 KNm. Rotation angle: 425°: 425°: 425°. Maximum reach: 10.30 m: 10.30 m: 10.30 m. Operating pressure: 240 Bar: 240 Bar: 260 Bar. Recommended pump flow rate: 1x90 Lt/min, 2x70 Lt/min: 1x100 Lt/min, 2x80 Lt/min: 1x100 Lt/min, 2x80 Lt/min. Loader\Crane weight (excluding terminal equipment): 2400 kg: 2600 kg: 2650 kg.
