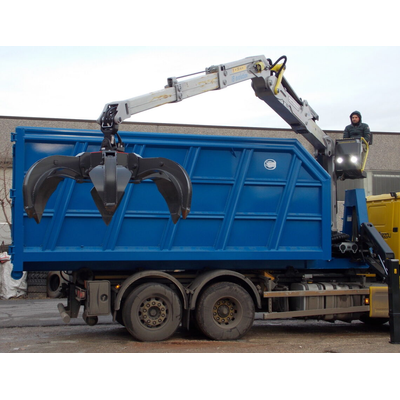

Icarbazzoli - Model IB 120-150.L3.83 -Loaders for Truck and Chipper

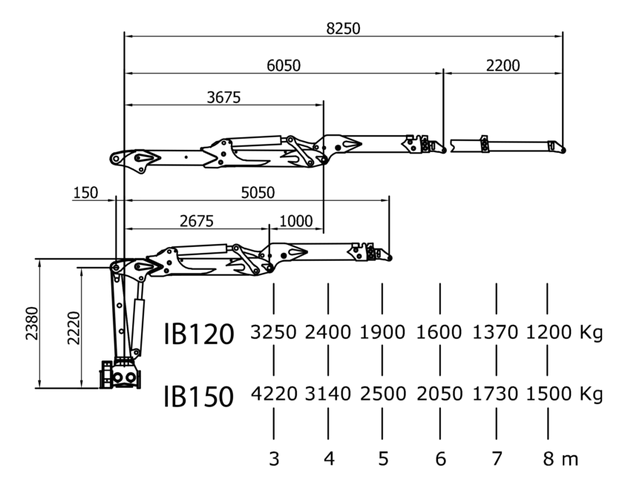

Net load moment: 98 KNm: 127 KNm. Rotational torque (net): 28 KNm: 30 KNm. Rotation angle: 425°: 425°. Maximum reach: 8.30 m: 8.30 m. Operating pressure: 240 Bar: 220 Bar. Recommended pump flow rate: 1x90 - 2x70 Lt/min: 1x100 - 2x80 Lt/min. Loader weight (excluding
terminal equipment): 2750 kg: 2800 kg.
