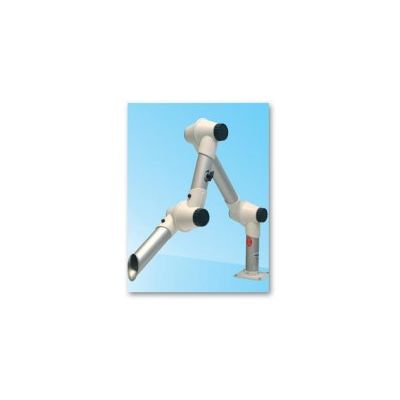

Fumex - Model Terfu -Local Fume Extractor for Laboratories

The standard version is suitable for extracting most types of airborne pollutants in

• Laboratories
• Schools, universities
• Hospitals
• The pharmaceutical industry
• Hairdressing salons
• The electronics industry

Simple, easy function

• Terfu`s joints contain ball bearings and have a large frictional diameter
  • Easily adjustable by means of a one-handed knob
• Support springs balance out the weight of the arm
• 360˚ rotation and 100 mm ventilation channel
• Tight-sealing damper as standard

Available for ceiling, wall and bench installation in different constructions.

• Standard
  • For use in most laboratory environments
  • Joints made from polypropylene and tubes from anodised aluminium
  • Tube diameters in Ø50, 75 and 100 mm
• PP
  • For environments containing high concentrations of corrosive pollutants
  • Internal epoxy coating is recommended for ceiling installations
  • Joints and tubes made from polypropylene
  • Tube diameters in Ø75 and 100 mm
• ATEX
  • For explosive environments
  • Complies with the ATEX directive 94/9/EC
  • Joints and tubes made from conductive polypropylene
  • Only available with tube dimension Ø100 mm. For dimension Ø75 mm, see extractor type ME.
• ESD
  • For environments with risks of sparks from static electricity in the electronics industry
  • Certified in accordance with EN 61340-5-1
  • Joints made from conductive polypropylene and tubes from anodised aluminium
  • Only available with tube dimension Ø50 mm. For dimension Ø75 mm, see extractor type ME.

• Suction nozzle, metal hood, dome hood, shovel hood, flat screen hood, flexible suction nozzle
• Ceiling mountings in eight standard lengths, wall brackets, flexible bench mounting
• Reduction sleeve, protective grille
