DefenderModel 3E -Long Bed Skid Tank

SHARE

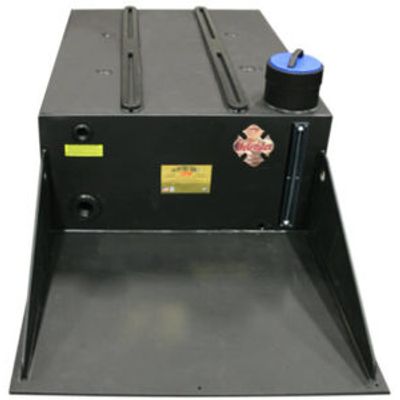

The Defender™3E skid tank fits in a standard 8ft pick-up truck bed. Additionally, it is a tank that allows you to combine standardization and simplicity with performance and price in one package that allows for a quick attack on any brush, trash, or car fire. The Defender™3E Long Bed skid tank is available in 150, 200, 225, 300, and 400-gallon capacities. Each tank includes a ¾” thick integrated base plate with a pump mounting area. This base design combined will allow for a completed vehicle with a lower center of gravity than tanks with skid spacers. This standard skid tank has a flat floor which allows it to be mounted directly on a flatbed or slid directly into the bed of most pick-up or utility bodies. Like all UPF Poly-Tanks®, the Defender™3E skid tank is manufactured from specially formulated PT2E™ resin. The Defender 3E skid tank is an excellent choice for your brush truck skid unit.

Most popular related searches

Defender™ 3E Long Bed Skid Tank

  • 150, 200, 225, 250, 300, and 400 US Gallon Capacities
  • Standard tank sizes utilize a 96″ long base, including a pump platform.
  • Pump mounting platform side gussets
  • 4 lifting points.
  • Full-length booster reel mounting blocks with sliding nut connections
  • Black textured finish. (Painting is not recommended)
  • 8″ round fill tower with 3″ vent/overflow pipe.
  • External liquid level sight tube
  • 2-1/2″ female NPT tank suction.
  • 1-1/2″ female NPT tank fill port (diffused)
  • 3/4″ female NPT drain port with plug.
  • 150, 200. 225, 250, 300, and 400-Gallon Capacities

Defender™ 3E Fire Skid Unit

  • 3″ Channel Full Skid
  • 4″ Channel Full Skid
  • 5″ Channel Full Skid
  • Skid Rail per foot up to 7″
  • Under Tank Storage Skid
  • Poly Tray for Storage Skid (requires under tank storage option)
  • Poly Hose tray mounted to either or both sides of the tank.
