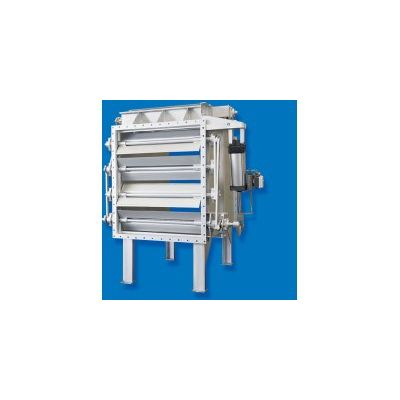

Bidapro - Model DL -Louvers Damper

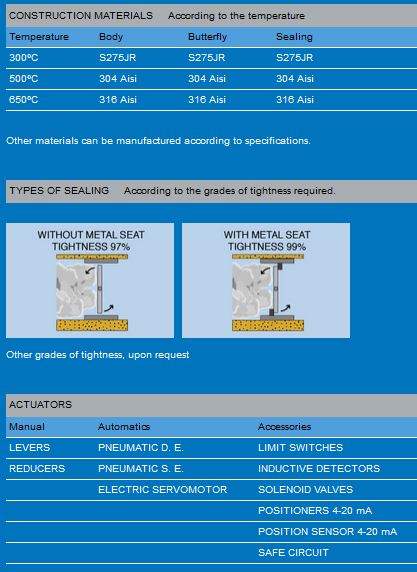

Louvers damper type DL for assembly between flanges. Fabricated construction. Standard design planned for assembly of the actuator shaft be in horizontal position. According to working temperature different kind of materials are used. Design dimensions planned for external installation of heat-resistant. Optional design for louvers in PARALLEL and OPPOSITE side. Relative tightness and different types of sealing according to the grade of tightness required for the application. Limit temperature: 500º C, limit pressure: 0.5 bar. Top speed: 25 m./sec.
