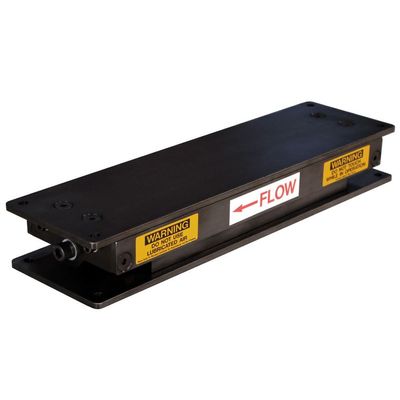

Pneumatic - Model Shuttle Pro-100LP -Low Profile Pneumatic Conveyor Drive for Single Tray Applications

The Shuttle Pro-100LP is a low-profile pneumatic conveyor drive meticulously engineered for single tray conveying applications. It operates efficiently under a pressure range of 0-80 PSI, requiring a minimal air consumption of 0.21 CFM at 120 strokes per minute utilizing dry filtered air. Capable of handling loads up to 100 pounds at 80 PSI, it maintains optimal performance across a temperature spectrum of 0-120°F. The unit measures 1.25 inches and can achieve a conveying speed of 12.50 feet per minute. Designed with durability in mind, it supports a total weight of 25 pounds while accommodating up to 50 pounds in conveying capacity. This pneumatic drive is suitable for linear motion projects, offering reliability and precision in industrial operations. Its implementation could significantly enhance productivity in automated material handling systems.
