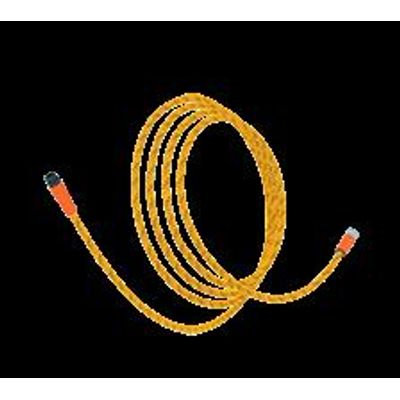

TTK - Model FG-ODR -Low Sensitivity Addressable Oil Sense Cable

Standard length (3 m, 7m, 12m and 20m) sensor sections or long line
section allowing optimised system architecture.
Microprocessor embedded in each FG-ODR sense cable allowing independent
digital transmission to the alarm unit.
Standard length sense cable provided with built-in plug-socket
connector.
Long line provided with built-in intermediate embedded connections
(for each section), plus connector at extremities on demand.
Structure of the sense cable comprising a silicon sensing wire, a
continuity wire, a communication wire (proprietary bus) and the
power supply wires. Protective external PE braid built on the cable.
Intrinsically safe - can be used in classified areas: Ex ia IIB T4 Ga
(IECEx “Zone 0”).

Reliable detection:
Sensitive to volatile liquid hydrocarbons.
Insensitive to water, inorganic pollutants and external loads (pressure).
Examples of detection time: Gasoline: 20-30 minutes (*), Jet Fuels:
2-4 hours (*), Diesel Oil: 3-6 hours (*).
Detects and locates hydrocarbon leaks on the section length.
Can be reused, allowing leak detection tests under real conditions.
The same unit FG-NET can be connected to FG-ODR sense cables
and mixed with water or acids / bases sense cables at the same time.
Easy to install and remove: standard FG-ODR cables pre-connected
with male / female connectors.
Note (*): depending on liquid composition and leak conditions
