Shincci -Â Model SHS Series -Low Temperature Belt-Type Sludge Dryer
Heat pump, Mesh belts and Insulation boards are all combined in one integratedmodule, which improves airtightness and makes onsite installation easier. Expansion valves adopted electronic type so as to increase dehumidification capacity. Heat exchangers and Refrigerant pipes are made of SUS316L instead of copper. Compressors are all installed in independent chambers, well- protected from the corrosive-gas to extend their service life. Two modules share one blower and the belt-driven type blower is installed in the Heat pump module instead of the mesh belts module, which makes cleaning and maintenance easier. Standard operation consumption is 240~300kw.h/1t.H20 (MAX). SUS316L base of dryer replacing aluminium alloy support, making sure a strong anti-corrosion performance. The service access door are upgraded to quick-opening type and improved with unique airtight structure design, making maintenance and inspection easier and effectively.

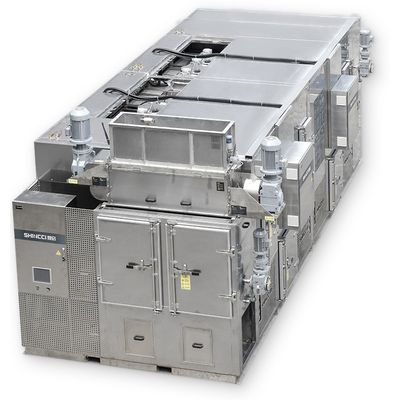

Integrated Belt-Type Sludge Dryer

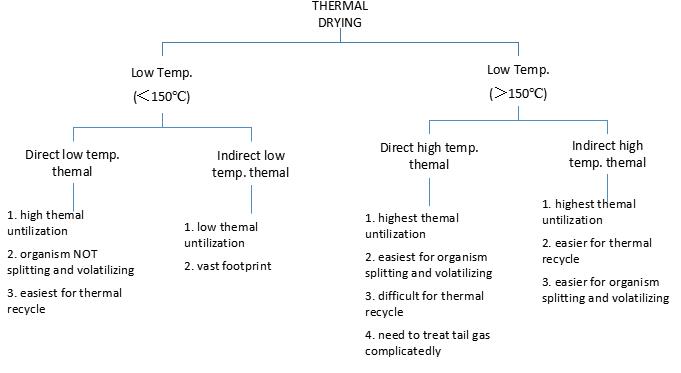

The dryer adopts direct low temperature drying. Direct low temperature drying makes hot effect on sludge, producing high thermal efficiency. Moreover, low temperature protects organism in the sludge from splitting and volatilization, while the circulation hot wind takes only water out from the sludge.
Shincci drying temperature is 45-50? (temperature of the recycle to dehumidification heat pump), while blowing-in temperature is 60-75? (bottom layer).

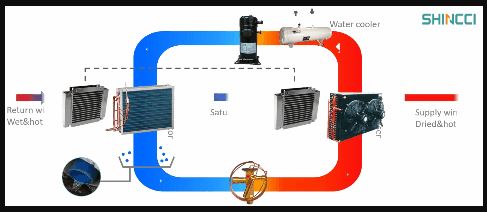

Dehumidification heat pump sludge dryer makes use of dehumidification heat pump to carry out the sludge through hot-air recycling, condensing, dehumidifying and drying. The evaporation of the sludge moisture produces latent heat. And the condensation of vapor on heat pump requires latent heat as well. Both process of latent heat is equal according to the law of conservation of energy. As a result, drying process does not require additional heat capacity. The energy consumed during the process is the electricity for the input to compressor, fan and motor.
This dehumidification dryer is equivalent to the combination of dehumidification heat pump and mesh belt conveyor (playing the role of sludge placement).
Parameters [SHS**FL]
SHS Series provides higher capacity, dryness and low energy consumption.
They are the new generation machines.
If you want to know the field application of a certain model, you can copy the product model and search in search bar.
Common Technical Specs
- Cooling Method: Forced-air Cooling FL
- Refrigerant: R134a
- Drying Temperature: 48~56?(recycle air)/ 65~80?(supply air)
- Control System: Touch screen + PLC programmable controller
- SHS750FL
- SHS1350FL
- SHS3000FL
- SHS6000FL
- SHS9000FL
- SHS10800FL
- SHS16200FL
- SHS21600FL
- SHS27000FL
- SHS32400FL
