F&J - Model GAS-2234E Global -Low Volume Air Sampler (220 - 240 VAC)

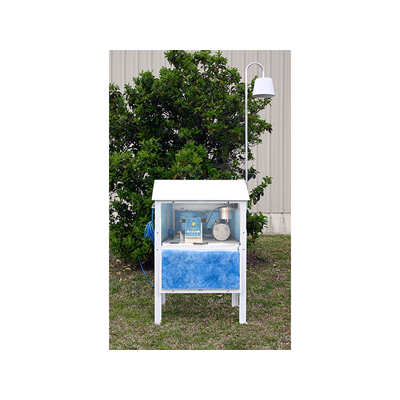

The Model GAS-2234E Global Air Sampling System is a microprocessor controlled low-volume air sampler consisting of an oil-less, carbon vane vacuum pump, with a constant airflow regulator for use where a nearly constant airflow is desirable. The regulator holds a constant pressure drop across an in-line orifice, by varying the flow through a bypass valve into the pump. This system allows the pump to work at a minimum head drop at all times, permitting it to run cooler, thus extending its service life. The oil-less pump requires no lubrication to maintain optimal efficiency during its service life. The pump is mounted on a removable base plate, which can be secured within the GFCI protected aluminum environmental Weatherhouse, model WH-3 having an enclosure rating of IPX3.temperatures as high as 60°C (140°F).
The GAS-2234E utilizes a bright VFD that has four (4) lines by 24 characters and utilizes wide temperature range electronic components for use in extreme ambient conditions.
The GAS-2234E Global Air Sampling System is designed for continuous outdoor use. Please consult the product specifications for the design temperature range and the installation category.
The typical operating flow range is 1 to 8.5 CFM (28 – 240LPM).
- State-of-the-Art Electronics
- Lightweight: ~15 lbs. (6,8 kg)
- Powerful: Flow rate to 300 LPM*
- Very low maintenance
- Automatic Flow Control
- Precision machined DP flow sensor
- Vacuum Fluorescent Display (VFD); 4 line × 24 characters
- Dual RS-232 communication ports
- Flow rate accuracy: ±3.0% Full Scale
- Auto zero calibration feature of flow sensor
- Multiple operator selectable data storage and data transmission frequency rates
- Wide temperature range electronics
- Brushless motor
- High ambient temperature rating to 140°F (60°C)
- Pump Type: Centrifugal blower
- Maximum Flowrate:
- 290 LPM - Typical w/8”X10” 5211810 glass fiber media
- 300+ LPM – Free air flow capacity
- Power Source:
- Line Power; 100VAC to 120VAC
- External DC Source – 24VDC
- Current Draw: 14 A maximum
- Filter Holder Fitting:3/8 FNPT quick disconnect
- Handle: Durable plastic
- Weight: 15 lbs. (6,8 kg)
- Dimensions: 10” × 11” × 14” (26 × 28 × 36 cm)
- Operating Temperature Range: 14°F to 140°F (-10°C to 60°C)
- Display: VFD, 4×24 characters
- Flow Control: Adjustable from keypad between 30-270 LPM
- Flow Accuracy: ±3.0% of Full Scale
- Communication Interface: Dual RS-232
- Language Options: English, French
- Sampling Mode: Volumetric Flow or Mass Flow
- Gas Type: Air, O2, N2, H2, CO, CO2, C3H6, He, NH3
- Engineering Units
- Volumetric Flow: sccm, SLPM, SCFM, sm3/min, sm3/hr
- Mass Flow: kg/hr, g/min, 1 lbs/hr
- Temperature: °C, °F
- Pressure: In, Hg, mm Hg, bar, atm, kPa, hPa
- Reference T and P
- Reference T: 0°C, 15°C, 20°C, 21.1°C (70°F), 25°C
- Reference P: 101.325 kPa (760 mm Hg), 100 kPa (1 bar)
- RS232 Data Output Frequency: 1 sec, 1 min, 10 min, 20 min, 30 min, 1 hr
- Data Storage Frequency: 1 min, 10 min, 20 min, 30 min, 1 hr
- Operating Mode: Continuous, Periodic
- Periodic Sampling Options: 1 hr. (12 five minute periods), or weekly (24 one hour periods for 7 days)
- Ending Mode: By time, By volume
- Operator Selectable Passwords: 2 levels
- Date and Time Setup: Input of real time and date
- Air Sampler Data Acquisition Program P/N: GASdaq
- Isokinetic sampling mode configuration P/N: ISOKOPT
