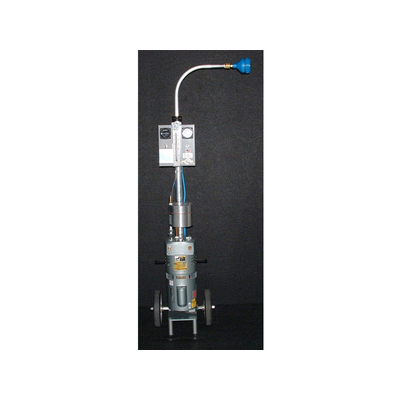

F&J - Model LV34ME -Low Volume Air Sampler (220 - 240 VAC)

This system allows the pump to work at a minimum head drop at all times permitting it to run cooler, thus extending its lifetime. The oil-less pump requires no lubrication to maintain optimal efficiency during its service life. The pump is mounted on a mobile cart with two rubber wheels to permit mobile transportation of the unit.

It should be noted that as pressure varies, the flow through an orifice with a constant pressure drop varies approximately as the square root of the ratio of the absolute pressure. Thus, if paper loading causes a pressure drop to one-half of the original, the flow will decrease to 0,7 of the original value. The orifice is adjustable, allowing flow rate adjustment from near zero up to the pump’s maximum capacity. Best long-term regulation is maintained at or below 6 cfm.

The LV34ME is supplied with an adjustable aluminum sampling gooseneck adjustable between 122 cm – 213 cm (4 – 7’).

The typical operating flow range is 1 to 8 CFM (30 – 230 LPM).

• Constant air flow regulator adjustable by user
• Durable 3/4 HP oil-less carbon vane pump designed for continuous use
• Instrument control box conveniently located
• Internal intake and exhaust mufflers
• Adjustable sampling gooseneck 122 cm – 213 cm (4’ – 7’)
• Rotometer, elapsed time meter and vacuum gauge
• Mobile cart with 8” hard rubber wheels
• 220 – 240VAC, 50/60Hz; single phase

• PUMP TYPE: Oil-less, carbon vane 3/4 hp; 1725 RPM @ 60Hz
• MAXIMUM CAPACITY: 10 CFM (283 LPM) at 0” Hg Pressure Drop
• ULTIMATE VACUUM: 25” (635 mm) Hg at sea level
• VACUUM GAUGE: 0” – 30” (0 to 762 mm) Hg; measures vacuum at outlet
• of rotometer
• POWER REQUIREMENTS: 220-240VAC; 50/60Hz at 5 amperes; single phase
• CIRCUIT BREAKER: 8 amperes
• ELECTRICAL CORD: All temperature, 3-wire, 16 gauge
• ELAPSED TIME INDICATOR: 0 – 9999,9 min. or 9999,9 hours
• THERMAL OVERLOAD PROTECTION: Furnished as an integral part of the motor
• CONSTANT AIRFLOW REGULATOR: Aluminum construction with silicone diaphragm;
• adjustable from 1 to 8 CFM (30-230 LPM)
• DIMENSIONS: 51L × 27,3A × 213 cm Alt (20”L×10¼”W×84”H)
• WEIGHT: 35 kg (77 lbs.)
• WHEELS: 8” Hard Rubber
• AVAILABLE ROTOMETERS:
• MODEL RANGE
• RMB56CFM 1 – 8 CFM
• RMB56LPM 20 – 240 LPM
• COMBINATION FILTER HOLDER: Durable plastic combination filter holders for F&J Model B, C or M charcoal cartridges and 47 mm, 2” or 50 mm diameter particulate filter papers are available. All models have quick disconnect function.
