Lowe Engineering - Magnetite Filter
Lowe Engineering are increasingly being requested for a means of contending with Magnetite fouling of needle valves, pressure reducing valves etc. on Steam and Hot Water Sampling Systems.
This problem has been very significantly compounded by the cycling regimes (2 shifting) found in many modern power generation plants. Lowe reviewed several solutions including pulsed electromagnetic separation, cyclones etc but concluded that each of them introduced significant collateral disadvantages. The optimum design has proved in actual plant trials to be able to considerably reduce the problem.
The Unit is introduced into the sample line after the cooler and can in most cases be easily retrofitted, requiring no power to operate it and some minor changes to the pipework. The magnetite is retained in the body as detailed below and at an appropriate time is back-flushed to drain. A large selection of internal element sizes can be chosen, dependant on the concentration of particles within the sample
The time interval between back-flushes is of course determined by the amount of magnetite in the system but tests have shown that it is capable of no intervention for at least two weeks under normal running with magnetite concentrations of 500 ppb.

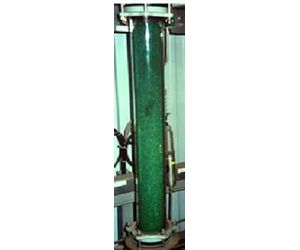

Cation Exchange Column.jpgResin Column.jpg Tests demonstrated the analyser sensors were not contaminated over the period compared with sensors on an adjacent HRSG line operating on an identical cycle. This of course gives more confidence in the reliability of the readings. With the magnetite removed from the system, maintenance costs are reduced and sensor life extended.
The trials showed that approximately 85% of the magnetite is removed with the station running constantly but with varying loads. This 85%, appeared to be the particle size that cause problems with the systems, as the remainder passed through with no apparent ill effects.
This was visible in the chamber of the on-line pH using the filter which remained free of magnetite where as this was not the case on the line without the filter. The supplied unit would comprise, the filter and blowdown valve, with 1/4" NPT connections, an optional fitting kit, consisting of back-flush valves and pipework, can also be supplied.
Should the above be of interest to you we would be pleased to discuss your requirements in detail.
- High Maintenance Costs?
- Blocked Cation Columns
- Clogged Filters?
- Blocked Needle Valves?
- Dirty Analyser Electrode and Sensors?
After Lowe`s Solution
- More reliable analysis.
- Increased Cation Exchange Resin life
- Increased Analyser Sensor life.
- Release of Technicians time to deal with other maintenance work.
- Short pay-back period from initial investment.
