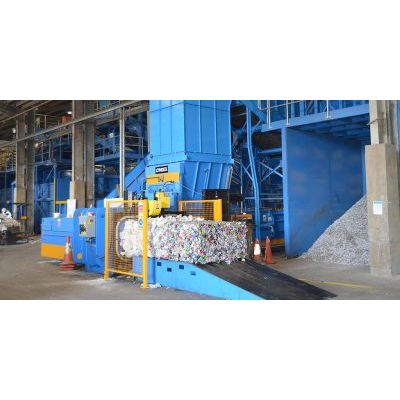

Lyndex - Model LT Ram II -Large Heavy Duty Baling Press

Supplied as standard with material stamper.

• Main cylinder sizes: 160 - 205Tonne
• Power units: 1x37 - 2x55kw
• Hopper size: 3000x2000 or 2500x1100mm
• Bale size: 760x960-1200x1500 or 760x1300x1500mm

The all welded construction from thick shot blasted plate guarantees long life, extra vertical ribs in the pressing area to contain all of the pressing forces. The compact design with vertical tying system ensures minimum floor area requirement.

All areas subjected to heavy wear are protected by easily exchangeable bolted wear parts, thus extending the life of the wear parts and reducing operating costs.

Key assemblies are machined where precision is required and the structure is assembled in jigs to ensure tolerances are maintained.

The material stamper is designed to automatically clear material blockages from in front of the blade, when processing heavy grade material. The automatic operation keeps the machine in production, removing manual intervention, resulting in time-saving. Using a 24-tonne vertical cylinder the stamper assembly covers the whole width of the press chamber.

• Length x Width x Height 10.6 x 5.7 x 2.7 mtr
• Weight 45 Tonnes
• Hopper Length x Width 3.0 x 2.0 mtr or 2.5 x 1.1 mtr
• Bale Height x Width x length 760 x 960 - 1194 x 1524 mm or 760 x 1300 - 1530 x 1100 mm
• Drive 2x37, 2x55, 2x75, 3x55 kW
• Pressing Force 120; 160, 205 Tonnes
• Specific Pressing Force Up to 17 Kg/cm²
• Stamper Pressing Force 24 Tonnes

Capacity

• PET - HDPE Up to 12 Tonnes/hour
• OCC Up to 23 Tonnes/hour
• Newspaper Up to 32 Tonnes/hour
• Steel Cans Up to 32 Tonnes/hour
• Non-Ferrous Up to 23 Tonnes/hour
• MSW Up to 39 Tonnes/hour
