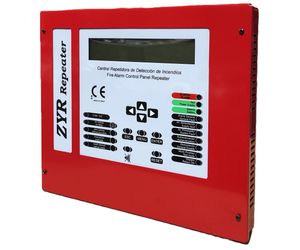

COFEM - Model ZYR Repeter panel for CLYON, ZAFIR and LYONRM -Lyon Control Panel
The LYON / ZAFIR / COMPACT Lyon control panel allows to connect up to 15 repeaters, using a 4 wires of 1,5 mm2 connection (two for supply and two for communication for RS485 line). The two wires of the RS485 line will be connected from the control panel to the corresponding repeaters. The repeater wiring is realized like the figure attached. From 30 V output of the control panel power supply is allowed up to 3 repeaters. For C-Lyon and Zafir control panels is allowed supply 1 repeater. The rest of repeaters should be connected from the 30 V output of an external power supply. The wiring of repeaters, communication and power wires, will be realized with twisted and shielded halogen-free of 2×1,5 mm2 wire, maximum length up to 1200 m. In the end of the line should be connected a 120 Ω resistance, in the back panel of the last repeater.
Fire detection and alarm algorithmic control panel certified EN 54-2 and EN 54-4 in accordance with the Construction Products Directive.
The LYON REMOTE / ZAFIR / COMPACT Lyon central controller allows connecting up to 15 repeaters, by means of a 4-wire 1.5 mm2 connection (two power supply wires and two communication wires for the RS485 line). The two wires of the RS485 line will be connected from the control panel to the corresponding repeaters. The connection of the repeaters is made as shown in the attached figure.
Up to 3 repeaters can be connected to the 30V output of the Lyon Remote control panel power supply. For the C-Lyon and Zafir control panels, 1 repeater can be powered. The rest of the repeaters must be powered from the 30V output of an external power supply.
The connection of the repeaters, both communication cables and 30 V power supply cables, will be made with 2 x 1.5 mm2 twisted and shielded halogen-free cable, up to a maximum cable length of 1200 meters.
At the end of the installation, a 120 Ω resistor must be connected to the back panel of the last repeater connected.
The LYON REMOTE / ZAFIR / COMPACT Lyon control panel
allows to connect up to 15 repeaters, using a 4 wires of 1,5 mm2
connection (two for supply and two for communication for RS485
line). The two wires of the RS485 line will be connected from the
control panel to the corresponding repeaters. The repeater wiring
is realized like the figure attached.
From 30 V output of the control panel power supply is allowed
up to 3 repeaters. For C-Lyon and Zafir control panels is allowed
supply 1 repeater. The rest of repeaters should be connected from
the 30 V output of an external power supply.
The wiring of repeaters, communication and power wires, will be
realized with twisted and shielded halogen-free of 2x1,5 mm2
wire,
maximum length up to 1200 m.
In the end of the line should be connected a 120 Ω resistance, in
the back panel of the last repeater.
