COFEM SA
10 products found
COFEM SA products

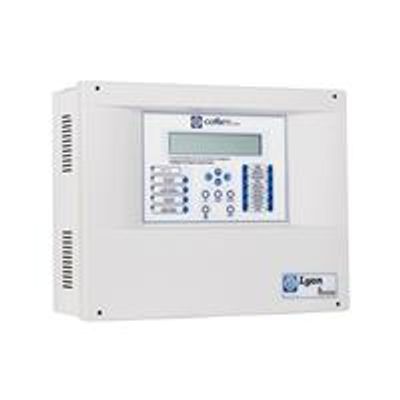

COFEM - Compact LYON Addressable panel with 2 loops. Capacity = 198 devices
The algorithmic addressable Control Panel Compact Lyon is EN 54-2 and EN 54-4 standard certified according to the latest CE Directives/Regulation. The Compact Lyon panel does the same functions that Lyon Control Panel, being fully compatible with it from the point of view of installation (cabling, analogue detectors, manual call points, modules and analogue sounders, etc.). It is particularly interesting in medium-size installations, traditionally designed for conventional systems, allowing using an addressable system with all its functionality and advantage. Software for configuration and you could update it for graphic monitoring of panels. Remote interface for doing maintanence from your mobile or PC from anywhere. App InBox for receiving notification in your mobile phone Android & IOS. Capacity for network connection between Cofem panels. (standard version).
COFEM - Remote Algorithmic Addressable Control Panel. Capacity = 4520 devices.
LYONRM Remote Algorithmic Addressable Control Panel has EN 54-2 and EN 54-4 standard certified according to the latest CE Directives/ Regulation and can successfully overcome difficult environmental conditions, electrical interferences, electromagnetic radiate upsets, vibrations, etc. Expandable addressable panel from 1 to 20 loop. Loop capacity up to 226 devices. Up to 64 relays per loop. Maximum capacity per panel 4520 devices. Software for configuration and you could update it for graphic monitoring of panels. Remote interface for doing maintanence from your mobile or PC from anywhere. App InBox for receiving notification in your mobile phone Android & IOS. Capacity for network connection between Cofem panels. (standard version)
COFEM - Algorithmic addressable Control Panel. Capacity = 452 devices
The Zafir Algorithmic addressable Control Panel is EN 54-2 and EN 54-4 according to the latest CE Directives/Regulation. The new development of Zafir control panel, allow integration of all the functionality of an addressable algorithmic system in a reduced-dimension cabinet. Capacity up to 452 detectors in 2 loops. Friendly Configuration. - Software for configuration and you could update it for graphic monitoring of panels. - Remote interface for doing maintanence from your mobile or PC from anywhere. - App InBox for receiving notification in your mobile phone Android & IOS. -Capacity for network connection between Cofem panels. (standard version).

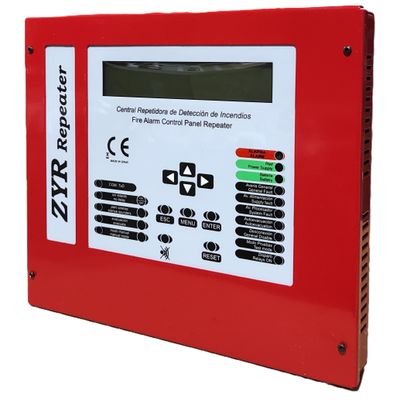

COFEM - Lyon Control Panel
The LYON / ZAFIR / COMPACT Lyon control panel allows to connect up to 15 repeaters, using a 4 wires of 1,5 mm2 connection (two for supply and two for communication for RS485 line). The two wires of the RS485 line will be connected from the control panel to the corresponding repeaters. The repeater wiring is realized like the figure attached. From 30 V output of the control panel power supply is allowed up to 3 repeaters. For C-Lyon and Zafir control panels is allowed supply 1 repeater. The rest of repeaters should be connected from the 30 V output of an external power supply. The wiring of repeaters, communication and power wires, will be realized with twisted and shielded halogen-free of 2×1,5 mm2 wire, maximum length up to 1200 m. In the end of the line should be connected a 120 Ω resistance, in the back panel of the last repeater.

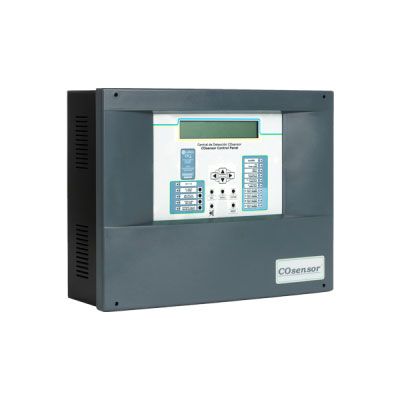

COFEM - CO Detection System with Addressable Panel For Automatic Activation Of Ventilation System In Underground Parkings
Addressable COsensor control panel for carbon monoxide (CO) and dioxide nitrogen (NO2) diffusion sensors designed with EN 50545-1 and UNE 23300 certified. It has the following models ZafirCO2 (Ref. ZCO2), ZafirCO3 (Ref. ZCO3) and ZafirCO4 (Ref. ZCO4). They correspond with 2, 3 or 4 zones and up to 25 CO and/or 25 NO2 sensors by zone. These models have DVB version (Double Ventilation and Batteries). The COsensor ZafirCO control panel allows setting the activation concentration for ventilation level 1, 2 and alarm, as well as the delays for the activation and delays for the stop of these levels/alarm.

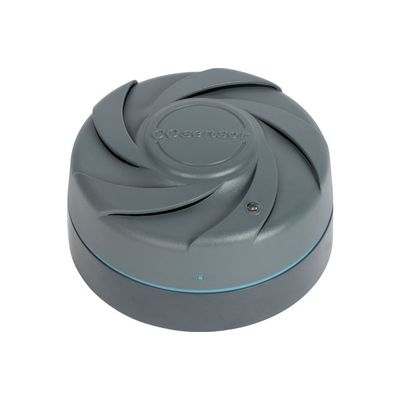

COFEM - CO Addressable detector for underground Parking
arbon monoxide (CO) diffusion sensor for COsensor system designed according to the European standard EN 50545-1 and UNE 23300 certified. The sensor is designed to work with all models of COsensor control panels, both conventional (MCO and MiniCO models) and addressable (ZCO). In this way, when control panel start up , the sensor recognizes control panel and adapts its communication. The sensor is based on electrochemical technology that allows adequately answer to CO concentration in the environment, and send this information to the control panel. Then, control panel active properly activate ventilation and alarms. CO sensors must be distributed at the installation in accordance with standards and/or regulation. A recommendable coverage for these devices are between 200 and 300 m2 (check local standard), and place in a height between 1,5 and 2 m from the floor.

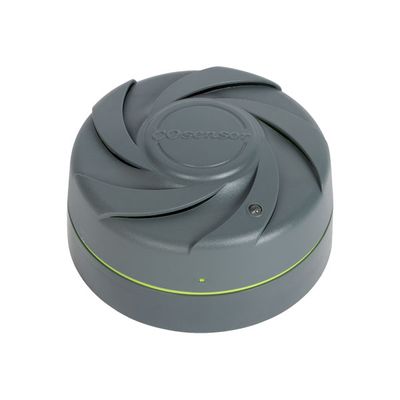

COFEM - NO2 Detector for parkings
Dioxide Nitrogen (NO2) diffusion sensor for COsensor system designed according to the European standard EN 50545-1 and UNE 23300 certified. The sensor is designed to work with all models of COsensor control panels, both conventional (CCO and MiniCO models) and addressable (ZafirCO). . It is allowed installation of CO and NO2 sensors in the same detection zone line. Relation between NO2 and CO is lineal indicating 100 ppm of CO with 2,5 ppm of NO2. Connected with addressable control panel, it makes double flash when the concentration read by the sensor is equal or higher than the ventilation level programmed at control panel, and fixed light when concentration read by the sensor is equal or higher than the alarm level programmed at control panel. NO2 sensors must be distributed at the installation in accordance with standards and/or regulation. A recommendable coverage for these devices are between 200 and 300 m2, and place in a height between 1,5 and 2 m from the floor.

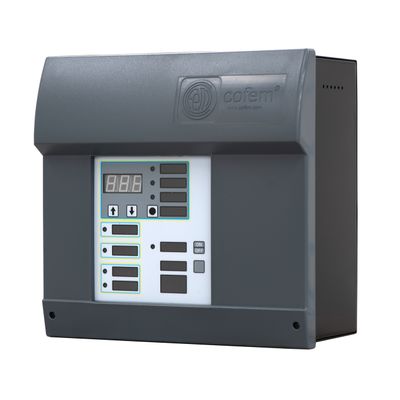

COFEM - CO Conventional Detection Panel For Activation Of Ventilation System At Underground Parkings
Conventional automatic COsensor station with carbon monoxide (CO) and nitrogen dioxide (NO2) diffusion sensors, certified UNE 23300. This control panel includes the MiniCO120 (Ref. MCO120) and MiniCO120DVB (Ref. MCO120DVB) models of 1 zone with capacity for 20 detectors. The model ending in “DVB” refers to the fact that it has double ventilation and battery charger. They are especially suitable for parking lots or places that only need 1 ventilation zone or the installation of few sensors in the same. It has dry contact outputs for ventilation, a 30Vdc auxiliary output and an alarm dry contact output. CO sensors model SCO and NO2 sensors model SDN can be placed in the same zone. The control panel allows manual activation and deactivation of the ventilations. The equipment is designed to use diffusion sensors and factory calibrated to operate for the lifetime of these sensors, and UNE 23300 certified.

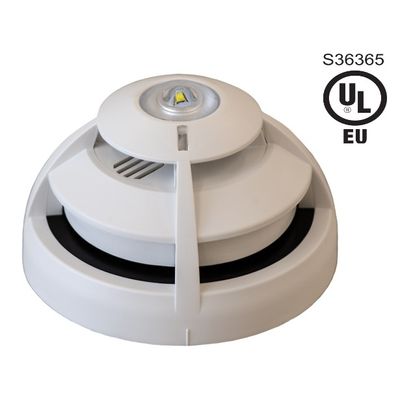

COFEM - Addressable detector built-in with SOUNDER & FLASH and UL.
A50 addressable detector built-in with sounder & flash & isolator and each feature with UL certification!! plus, it is a smoke & heat detector. it is your solution for hotels, residencial buildings and others - A50SHILD: A50SHI with light and sound. - A50SILD: A50SI with light and sound. - A50HILD: A50HI with light and sound. - A50SHID: A50SHI with sound. - A50SID: A50SI with sound. - A50HID: A50HI with sound. - A50SHIL: A0SHI with light. - A50SIL: A50SI with light. - A50HIL: A50HI with light.
