4B - Model M3003V10AI, M3008V10AI, M3007V10AI -M3003, M3008 & M3007 Slipswitch

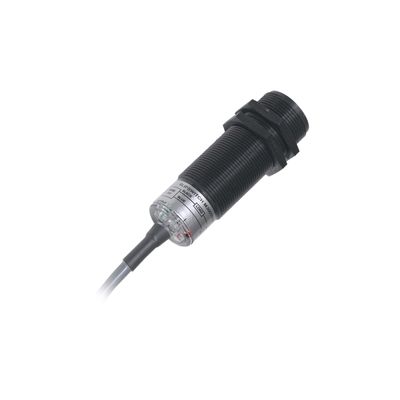

The M300 Slipswitch is an easy-to-use inductive proximity shaft speed monitoring device with an adjustable 0 - 30 second start-up delay, all housed in a 30 mm diameter moulded body. The self-contained unit has a single set point, which signals when the shaft speed has dropped by 20% of normal running speed. It is used for detecting dangerous slow down and underspeed conditions on conveyors, bucket elevators, air locks, mixers, fans, grinders and many other machines.

No connection is necessary between the sensor and the equipment being monitored. The proximity sensor detects a stud or bolt mounted on a shaft, or other suitable target. Ideally, the target should be of ferrous metal, but non-ferrous metal will be detected at a shorter range. Maximum range of ferrous targets is 8 mm (5/16”) and for non-ferrous targets is 5 mm (6/16”), assuming a 20 mm (3/4”) diameter target. Smaller targets may be used but operating distances will be reduced.

ATEX and IECEx Zone 20 (Dust) and Zone 0 (Gas) Approved
Signals underspeed for bucket elevators, conveyors and all rotating machinery
Inductive proximity sensor in 30mm diameter housing, which detects rotating metal target
20% underspeed set point
2 wire & 5 wire versions available
Easy and reliable calibration procedure by using a magnet
Non-contacting & failsafe
Compatible with the Whirligig speed sensor mount
