mACS Transmitter

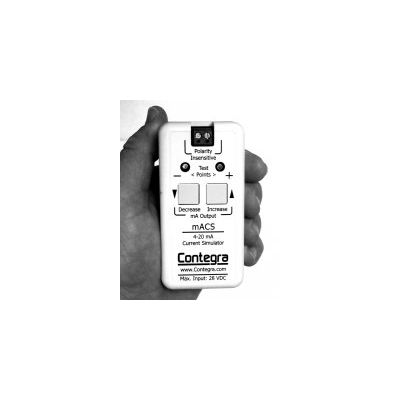

The mACS (pronounced `Max`) is a two-wire, loop-powered 4-20 mADC transmitter.  Field service technicians find the mACS to be an invaluable tool to help isolate control system problems and commission control systems.  The mACS produces a 4-20 mADC output which is easily adjusted over 96 steps.  Pressing and holding the Increment or Decrement push-button causes the mACS to accelerate movement to the respective Low or High output.

Sometimes life can feel a little out-of-control.  Especially when it`s late and you`re working on starting-up or repairing a process application such as a sewage pumping station.  Field service techs need to be able to control variables so that they can isolate and fix a problem.  However, a sewage wet well is an active place.  Stuff is constantly flowing-in and then being pumped-out.  Understandably, the signal that`s produced by the associated level sensor (e.g. submersible, ultrasonic, radar, etc.) is constantly changing.  Contegra`s mACS (pronounced Max) helps to restrict the variables by providing a stable & push-button adjustable 4-20 mADC output.  The field service rep uses the mACS as a temporary substitute for the level-sensing device.  The tech is then able to remove the variable signal and concentrate on the controller`s adjustment and setup.
