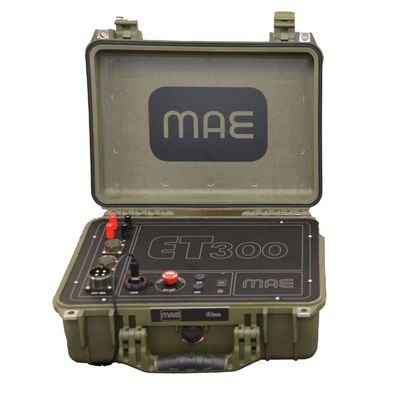

MAE - Model ET300 -Multichannel Georesistivimeter 24-48 channels

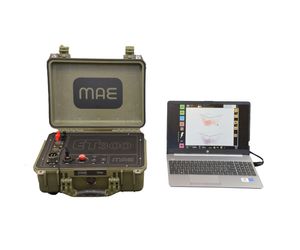

The main feature of this instrumentation is the maximum versatility of use combined with the high speed of execution of surveys, both 2D and 3D. ET300 is managed via a normal laptop or tablet via USB connection. It is equipped with the "preview" function which allows the user to visualize a preview of the pseudo-section derived from the train of data just acquired directly in the field. The use of this function allows the operator to immediately verify the logged data. The instrumentation carries out the measurement or the measurement cycle set by the user in automatic mode. Once the measurement cycle is concluded, the acquired data can be immediately displayed using the "preview" function, the use of which allows the operator to immediately check the recorded data and process it with the relative data processing software.
STRENGTHS
- Parallelization of measurements for pole-dipole, pole-pole, dipole-dipole and three-dimensional configurations
- 24-bit resolution
- Pseudosection in real time
- ET30024 - RESISTIVIMETER 24 CHANNELS
- ET30048 - RESISTIVIMETER 48 CHANNELS
- Dramatically reduce the time it takes to complete a survey.
- Possibility of tackling investigations that were previously unthinkable, due to the high number of measures required
- Possibility of repeating the measurements several times to minimize the uncertainty, for the same time taken
- Lower energy consumption
- Recording of the standard deviation for each measurement
- Graphical representation with error bars of the measuring points
- Real-time visualization of the pseudo-section of resistivity
- Availability of an automatic repetition function of the measurements with an error percentage greater than a configurable threshold.
General:
- ADC Technology: 24bit Delta-Sigma ADC
- Number of electrodes: 24-48 (with 20 channels)
- Array configurations: 1D, 2D, 3D
- Measurements: Self potential, resistivity, induced polarization
- Dimension: 40x33x17 cm
- Weight: 6.3kg
- Export compatibility: RESinv, ERTlab, ZondRES, MAE
- Roll-along function: Software controlled
- Real-time pseudosection: 1D, 2D and 3D
- Sequence generator: 1D, 2D and 3D
- Case: IP67
- Enviromental condition: -20°C/90°C
- Power supply: External 12V battery, suggested 100Ah
- Average consumption : 0.5A, up to 50A peak
Output:
- Power output: 300W
- Output voltage: ±50V, ±100V, ±200V, ±400V, ±800V
- Output current: up to 6A at 50V, up to 0.375A at 800V
- Energization diagram: Custom from 250ms
- Precision: ±0.2 μA
- Accuracy: < 0.2 %
Input:
- Measurements strategy: Parallel
- Input voltage: ±25V
- Precision: 1.5 μV vs fullscale
- Accuracy: < 0.2 %
- Input impedance: 2.5MΩ
- Stacking and noise reduction: Up to 255
- Input notch filter: 50 Hz
- Self potential adjustment: Automatic
- IP's windows: Up to 20 windows at 20ms interval
- Multi-electrode geoelectrical prospecting
- Spontaneous Potential Measurement
- Induced Polarization measurement
- V.E.S. Vertical Electrical Survey
