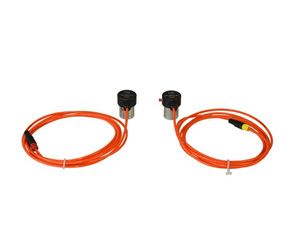

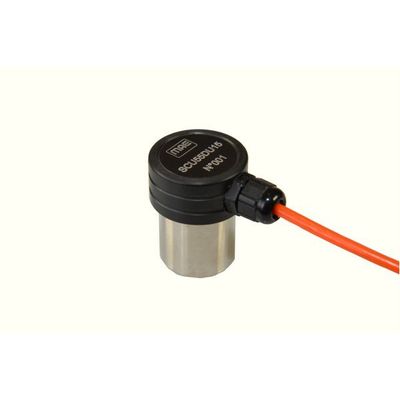

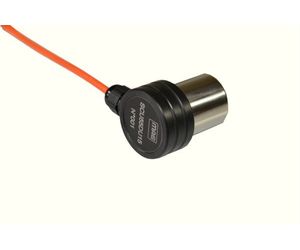

MAE - Model SCU55DU15 -Ultrasonic transmitting probe 55 kHz frequency ODU connector
FromM.A.E. Srl
Ultrasonic transmitting probe for Non destructive test (NDT) on concrete, wood, plastic or stone materials.Most popular related searches
non-destructive testing
ultrasonic probe
ultrasonic transducer
non-destructive concrete testing
NDT test
NDT testing
ultrasonic testing
concrete testing
temperature cable
NDT ultrasonic
SCU55DU15 model is an ultrasonic transducer of high efficiency and active type, designed specifically for non destructive test on building materials such as hardened concrete, marbles and stone material in general, wood, plastic. Ultrasounds allow to detect holes, air bubbles, micro-cracks into the investigated material. MAE projects and manufactures probe according to highest quality standards, in order to grant a long-lasting efficiency without signal decay in time.
Physical specifications:
- Case: stainless steel
- Diameter: 30 mm
- Top ring diameter: 38 mm
- Height: 50 mm
- Weight: 200 g (with cable)
- Operative temperature range (°C): -20 to +80
- Sensitive element: piezoceramic
- Connector: ODU
- Cable lenght: 2.5 mt
Frequency:
- Resonance frequency: 55 Khz
- Minimum excitation voltage: Vp 300
- Maximum excitation voltage: Vp 2000
