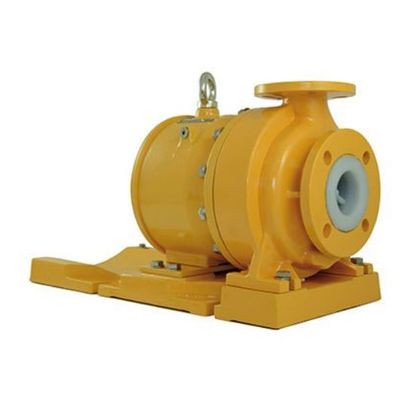

CDR - Model UTN -Magnetic Drive Pump

The synchronous drive configuration is based on an outer magnet ring assembly built to magnetically couple with an inner magnet ring assembly.  These two magnet rings are locked together by the flux of attracting magnet poles flowing through the containment isolation shell.

The UTN-L is a long coupled pumps use the back pull-out principle and a strong bearing housing with flexible coupling and the UTN-BL is a close coupled pump equipped with standard motors.

A versatile pump. this range is suitable for handling corrosive,aggressive and hazardous liquids (low viscosity, clean or slightly contaminated) in the chemical, petrochemical and pharmaceutical industries, where the highest safety standards are crucial.

With an iron casing, the UTN Mag Drive Pump is resistant to pipe strain, vibration, external shocks and during the handling whilst allowing the casing to be vacuum resistant.  It features a top centreline discharge, closed impeller and isolation shell.  This pump is also available with our popular RunSafeSiC shaft for increased reliability.

Pump lining available in:  Polypropylene (PP), Polyvinylidene fluoride (PVDF) or Perfluoroalkoxy (PFA)
