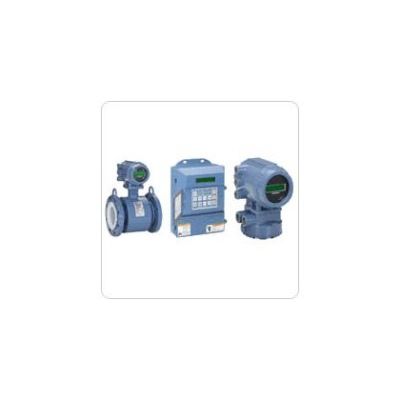

Rosemount - Model 8700 -Magnetic Flowmeter Transmitters
The Rosemount 8700 Magnetic Flowmeter Transmitters have multiple diagnostics available. Best-in-Class performance coupled with advanced diagnostics provide unparalleled process management capabilities. With an optional backlit Local Operator Interface (LOI), configuration changes and adjustments can be accomplished even in hazardous locations without exposing the electronics to the environment.
- Advanced diagnostics give unparalleled information about process conditions and meter performance.
- Dual compartment housing design that meets the most stringent international standards and ensures reliability in any environment.
- Isolated Local Operator Interface (LOI) makes changes in the field safe and easy.
- Available in an integral or remote mount design.
- Easier Installation with Grounding and Wiring diagnostic
- Easier Maintenance with coil fault and transmitter fault diagnostics
- Easier verification with the 8714i Meter Verification diagnostic
- Improved Process Management
- Improved Performance
- Selectable Coil Drive Frequency
- Advanced Digital Signal Processing
- High Process Noise Diagnostic
- Tunable Empty Pipe Diagnostic
- Accuracy: Up to ±0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, ±0.25% over 40:1 flow turndown
- Diagnostic: In Situ Meter Verification, Grounding ⁄ Wiring Fault Detection, High Process Noise Detection, Tunable Empty Pipe Detection, Transmitter Fault Detection, Sensor Fault Detection
- Compatibility:
- All Rosemount manufactured Sensors: 8705, 8711, 8721, 8707
- Universal capabilities allow E-Series transmitters to be compatible with AC and DC powered sensors from other manufacturers.
- Power Supply: 90-250 VAC, 50-60 Hz or 12-42 VDC
- Power Consumption: 15 W maximum - DC
- 40 VA maximum - AC
- Enclosure Rating:
- 8732E: Type 4x, IEC 60529, IP66
- 8712E: Type 4x, IP66
The Rosemount 8700 Magnetic Flowmeter Transmitters have an environmentally sealed compartment, making it ideal for harsh environment installations where moisture and contaminant infiltration is possible. With best in class performance, the 8700 transmitters provide more accurate and stable measurements in critical applications. In addition, the advanced diagnostic capabilities provide unparalleled value to users in many applications and industries.
With a wide range of liner and electrode materials available, the Rosemount 8700 Series Magnetic Flowmeter family is suitable for virtually any conductive liquid application. Rosemount Magnetic Flowmeters offer the benefit of measuring flow in a package unaffected by density, temperature, pressure, and viscosity change.
