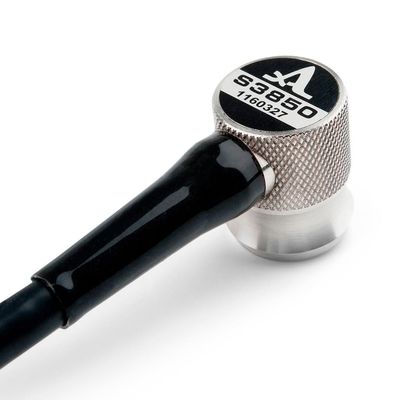

ACS - Model S3850 - Pulse -Magnetized Electromagnetic Acoustic Transducer (EMAT) Transducer with Circular Polarization 4 MHz

SHARE

EMAT ultrasonic transducer for transmitting and receiving the ultrasonic shear waves with the novel pulse magnatization technology.

Most popular related searches
electromagnetic acoustic transducer
acoustic transducer
ultrasonic concrete testing
pulse magnetization
concrete testing
ultrasonic transducer
thickness monitoring
ultrasonic testing

An electro-magnetic acoustic transducer S3850 for the couplant-free transmitting and receiving ultrasonic shear waves by the novel electromagnetic biasing technology (pulse magnetization) can be used for thickness measurements by A1270 EMAT.

The transducer can be driven by following ACS instruments:

  • Transducer type: EMAT (electro-magnetic biasing, no permanent magnet)
  • Nominal frequency: 4 MHz
  • Effective aperture: 8 mm
  • Overall dimensions:: 23x29 mm
  • Maximal pulse voltage (peak-to-peak): ± 200 V
  • Cable length:: 1000 mm
  • Weight: 14 g
