Precisely control the temperature of sample tubes and flow set ups. The Spinsolve 43 MHz systems can be equipped with a unique temperature control system that allows to control the temperature with out the need of additional nitrogen or dry air supply. This is achieved by adjusting the magnet temperature instead of using a gas flow approach, which reduces the sample volume and sensitivity. The variable temperature option does not compromise resolution, sensitivity or stability. Download the Elevated Sample Temperature Control brochure here.
By utilizing the multi-layer temperature control of the Spinsolve series the system stability is not compromised over the whole temperature range.

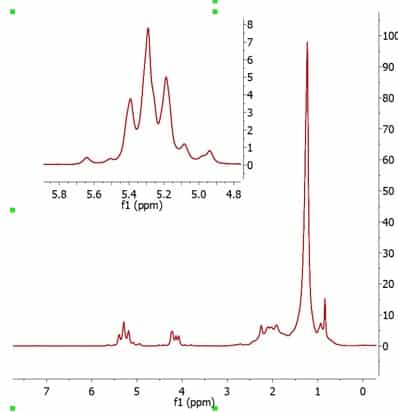

Graph: 100 superimposed vegetable oil spectra taken over a period of 20 h at 60°C. Spectra were acquired without any reshimming between measurements.
- System and magnet design that allows to adjust the temperature of the magnet
- Precise temperature control for static samples as well as online setups
- Works with standard 5 mm tubes and flow cell without sensitivity loss
- No requirement to re-calibrate at different temperatures
- No need of nitrogen or dry air supply
- Temperature range : RT to 60 °C
- Frequency: 43 MHz
- Available as Standard and Ultra version
- Available with diffusion gradient

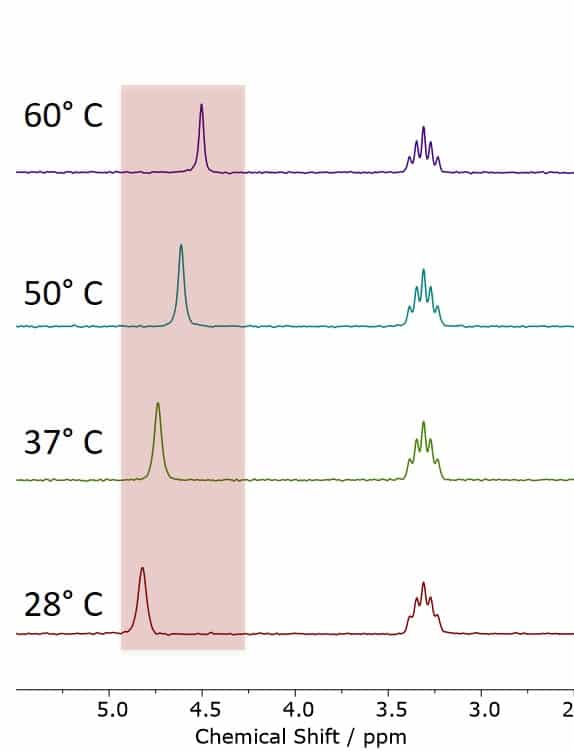

The appearance of the ester peak and the disappearance of the alcohol peak can be easily followed. The four graphs on the right show the concentrations obtained through the integration of the ester and the alcohol as a function of time for different temperatures.

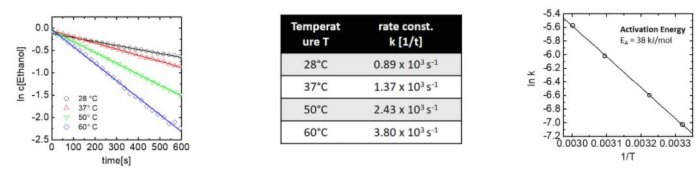

As trifluoro acetic acid was used in high excess the reaction follows a pseudo first order kinetics, which is demonstrated by linear dependence of the logarithm of the ethanol concentration on time. From the slopes of the linear fit the reaction rate constants can be extracted. Rate constant are given in the table in the center. Furthermore, when plotting the logarithm of the rate constant against T -1 and applying the Arrhenius equation the activation energy of the reaction can be determined via the slope of the linear dependence. This is demonstrated in the graph on the right hand side. 1

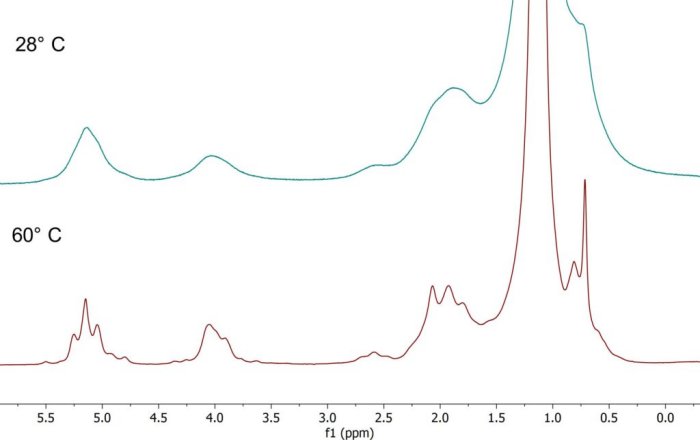

The linewidth in the NMR spectrum does not only depend on the homogeneity of the magnetic field, but as well on sample properties like the viscosity as well. High viscous samples do have shorter relaxation times resulting in broad lines. With increasing sample temperature the viscosity gets smaller and the lines in NMR spectrum get narrower. The example shows spectra of a vegetable oil taken at 28° C and 60° C respectively. It can be clearly seen how the linewidth improves at 60°C and the J-coupling patterns become visible.
