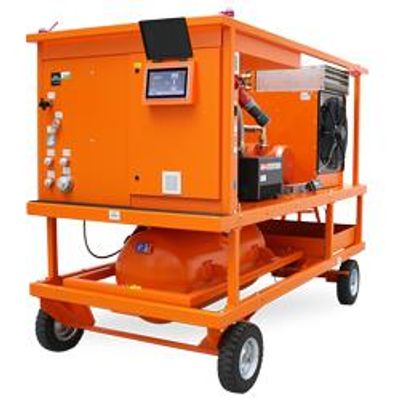

DILO Mega - Model L400R/L600R01/02 -Maintenance Units for Large and Extra Large Gas Compartments
These maintenance units are our most powerful devices and guarantee quick maintenance of gas compartments. Thanks to the state-of-the art control all functions run automatically and are displayed on a 10" multi-touch screen. A new software with intuitive user navigation makes operation very easy and comfortable. This service cart can optionally be operated via smartphone, tablet or laptop.
Emission-free gas handling was also the requirement when designing this series. SF 6 gas can be extracted up to a final vacuum of <1 mbar. And by using gas-tight couplings and connections, emissions have absolutely no chance! Short suction and evacuation times are ensured by installing a coupling with a larger cross-section DN40.
All devices are optionally available with a second set of DN20 and DN40 connection couplings. This means that two work processes can run simultaneously. It is possible to evacuate air from a gas space and fill another gas space with SF 6 gas in parallel or to extract the gas from it. Multitasking in practice.
- Devices for liquid SF 6 storage
- SF 6 gas recovery up to <1 mbar
- Automatic control and 10 "multi-touch panel (capacitive)
- Optional operation via mobile devices
- Reversing switch for the direction of rotation
- Digital weighing device for SF 6 bottles
- Residual gas extraction when changing filters up to 1 mbar
- Transport pressure reduction as an integrated special function
- All variants also with built-in tanks with CE marking, optionally also according to SQL and ASME standards
- Trailer construction possible
