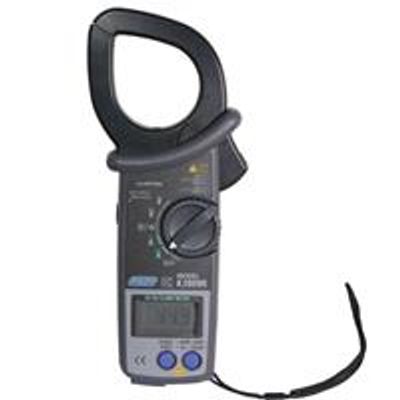

Major Tech - Model K2009A -AC/DC Clamp Meters
Major Tech’s AC/DC clamp meters range from 100A to 2000As. The functionality of the CATIV rated clamps are ideal for the hazardous and arduous work conditions, featuring True RMS to average reading.
The K2009A is designed for superior performance, value and has been redesigned to meet the IEC 61010 Safety Regulations. The new custom designed LCD has a maximum of 4000 counts, and has microprocessor controlled annunciators and the decimal point. The K2009A has added features that include an Auto Zero adjustment button for the DC current range as well as an OUTPUT terminal for current measurements that provides a DC voltage in proportion to the reading on AC or DC current range, ideal for long term monitoring with a recorder or other recording devices.
A unique terminal cover encloses the input terminals for COM and V/, when the OUTPUT terminal is being used, thus avoiding accidental application of voltage to the instrument. The tear-drop-shaped jaws with a maximum conductor diameter of 55mm allow easy access with conductors and the rugged construction withstands heavy-duty job site abuse.
The K2009A True RMS clamp meter offers a unique feature with the LoHz mode which automatically selects a lower sample rate in low frequency measurement to reduce the fluctuations of display readings. The average mode allows easy reading of fluctuating voltages and currents.
- Dimensions: 250 x 105 x 49mm
- Weight: 540g
Accessories:
- Carrying Case
- AA Batteries
- Test Leads
- Instruction Manual
- Output Jack
- COC
- Weight : 540g
- Jaw size : 55mm
- Duty Cycle : 0.5 to 99.0%
- Duty Cycle accuracy : ±(1.2% +2)
- Duty Cycle resolution : 0.001
- Frequency accuracy : ±(1.5% +5)
- Frequency resolution : 0.1Hz
- Input Impedance : Less than 2MΩ DCV & less than 2MΩ VAC
- Low battery indication : Yes
- DC Voltage resolution : 0.01V
- Over-range indication : Yes
- Peak hold : Yes
- Power source : 2 x R6P
- Resistance accuracy : ±(1.5% +2)
- Resistance resolution : 0.1Ω
- Safety Specs : IEC61010-1 CatIV 600V
- Digital Display : 4200
- DC Voltage accuracy : ±(1.0% +2)
- Continuity : Yes
- AC Current accuracy : ±(1.3% +3)
- Dimensions : 250 x 105 x 49mm
- Enclosure : Moulded case
- Frequency : 4000Hz
- Resistance : 4000Ω
- AC Bandwidth : 20Hz to 1KHz
- AC Current : 2000A
- AC current resolution : 0.1A
- DC Voltage : 1000V
- AC Voltage : 750V
- AC voltage accuracy : ±(1.0% +2)
- AC Voltage resolution : 0.01V
- DC Current : 2000A
- DC Current accuracy : ±(1.3% +2)
- DC Current resolution : 0.1A
- True RMS Measurements : ACV, ACA
