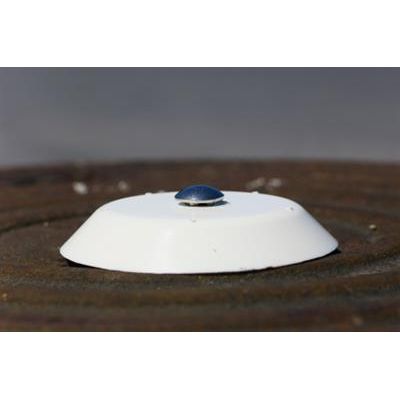

Tough antenna designed for use on manhole covers, even in heavy vehicle traffic locations. This antenna was initially designed for use with sewer and overflow monitoring units - sites where the telemetry is underground, and often covered with a steel manhole lid where you need an easy to install but effective above ground antenna. They can also be used in other vandal prone applications, such as on the top of roadside cabinets.Available in two versions, either 700MHz or 850MHz/900MHz

Most popular related searches

manhole opening

overflow monitoring

sewer overflow monitoring

sewer monitoring

site monitoring

Technical Specifications

700 frequency range (703MHz-803MHz, covers LTE frequency bands 12, 13, 14, 17 and 28)
850/900MHz version (824-803MHz) covers cellular bands 5, 6, 8, 19, 20, as well as 868/915MHz ISM telemetry bands
3dBi gain monoband tuned loop antenna
Low profile 120mm (4.72") diameter x 17mm (0.67") max height (same height as a cats eye road marker)
SMB male cable termination (fits through securing nut)
SMB to SMA male adapter included, other adapters available separately

Key Features

Available with 650mm or 1800mm cable length
Fits to a steel manhole lid with a single 10mm hole
M10 x 100mm slotted stainless steel coach bolt protects cable during manhole opening
High density urethane (white only) to withstand heavy traffic and extreme temperatures
Manufactured by Harvest in New Zealand
