Rausch - Manhole & Separator Pressure ...

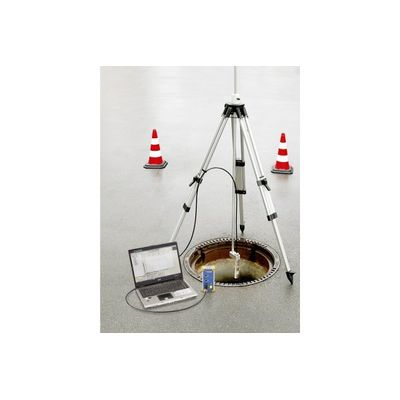

Rausch - Manhole & Separator Pressure Test System

Pressure test system for testing of manholes and/or liquid separators. Test accuracy (10 hours) 0.1 mm. LGA certificate BMW 0420285-01. With the temperature compensating relative pressure test sensor (0-40 mbar) a precise pressure test of separators in accordance with DIN 1999-100 is achieved.

Most popular related searches

pressure testing system

pressure level sensor

leak pressure test

Details:

Premus:

Control unit for connection of maximum 3 sensors for level measurement of liquid separators and manholes
Data acquisition and supply via USB
Optionally upgradeable to include automatic water top up
Control processor with RS232 interface to PC
Connectors and armatures for level sensor
Tripod, adjustable with holder for level sensor
Premus upgrade pressure test with water
Filling hose

Pressure transmitter:

Level sensor in stainless steel
Measuring range 0-300 mm (0-30 mbar)
Measuring resolution 0,1 mm
Accuracy 0,1 % FSO
Output 4 - 20 mA
Maximum acceptable excess pressure 1 bar
Protection IP 68
Connection with 10 m cable with pressure balancing cable

Documentation:

Notebook
Printer
Software for manhole and liquid separator test
