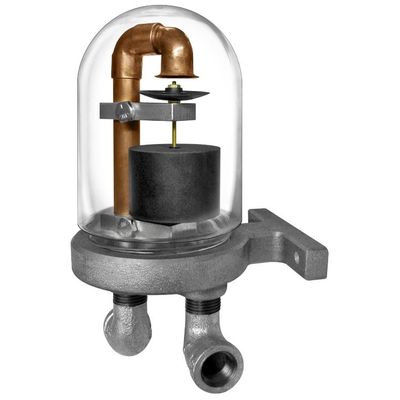

Protek - Model MP2000 -Manifold Primer Pump

LP or Gasoline Engine Intake. Manifold primers like our proprietary MP1000 are used to initiate suction when the vacuum source is the intake manifold of a multiple-cylinder gasoline or LP gas engine, or brake booster of a vehicle.

Water Pump Trap for Vacuum Pumps. As a water trap it is used when the vacuum source is a vacuum pump. The manifold primer/water trap utilizes a mechanical float valve that stops airflow as water enters the unit, thus "trapping" and preventing the water from continuing past it.

Other Manifold Primer Names: Although the primary name for this type of suction device is manifold primer, there are other nicknames and synonyms to describe them in different industries including: manifold primer water pump, vaccum manifold primer, manifold vacuum primer, irrigation manifold pump, water manifold pump.

• MP1000 - Has 3/8 NPTflow ports, IN at bottom and OUT at top. Mounting requires four 1/4" bolts or screws. Water drains from the unit through the priming line.
• MP2000 - Has 1/2 NPTIN and OUT flow ports on the bottom. Mounting requires two 1/4" bolts or screws. Water drains from the unit through an umbrella valve on the bottom.

• Can be mounted on any surface.
• Use on multiple cylinder gasoline or LPC engines.
• Durable clear housing allows operator to observe its functioning.
• Brass ball valve included.
