Potential - Manual Bar Screen

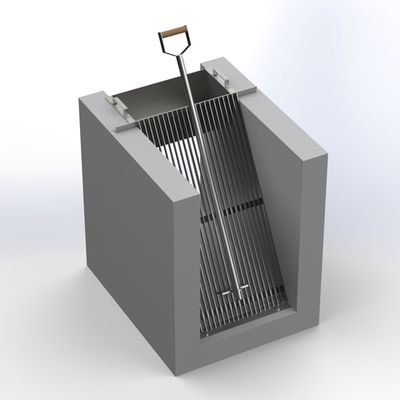

Manual Bar Screens are widely deployed at the entrance of the hydraulic structure, water intake, and pumping stations to trap flowing debris of large & medium sizes that could instigate downstream trouble. These screens are suited to serve industrial, municipal, and process water/wastewater screening. The debris is arrested in equally spaced inclined bars and is cleaned manually with the help of a manual rake comb, provided with the screen. We manufacture fixed and removable manual bar screens.
The Manual Bar Screen for wastewater treatment incorporates inclined bars that are equally spaced, to arrest large and medium flowing waste. Commonly, these screens are installed ahead of mechanical bar screens. It can also be used as a standby for mechanical bar screens.
- Bar Spacing: 6 mm and above
- Channel Width: Up to 3 m
- Channel Depth: Up to 5 m
- Operation: Manual
- MOC: CS/ SS/ Other material, on required
- Customized design
- Easy to install
- Low maintenance
- Safe operation in hazardous areas
- Spares are easily available
- Oily water treatment
- SBR Plants
- MBR plants
- Pre-treatment solutions
- Chemical Spill
- Floating Trash Removal
- Oil & Gas
- Water & wastewater
- Power
- Steel
- Municipal
- Mining
- Dairy
- Sugar
- Pharmaceuticals
- Food & beverages
- Chemicals
- Automobiles
- Miscellaneous (Wood, textiles, glass, paper, etc)
