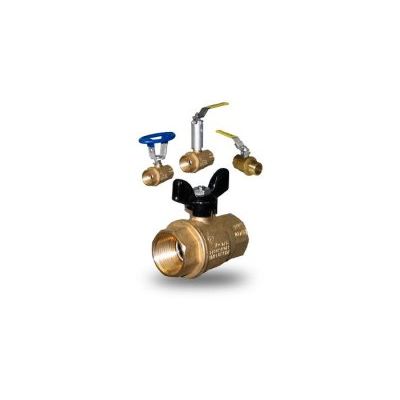

Assured Automation - Model 282 Series -Manual Brass Ball Valves
The 282 series manual ball valves are full port, brass, manual ball valves. They are available with NPT Female, NPT Male x Female, and Solder end connections. Four different manual handle styles are offered.
Most popular related searches
brass ball valve
ball valve
manual valve
non-drinking water
brass valve
rainwater harvesting
rainwater harvesting system
drinking water
rainwater storage
rainwater
- Full Port for unobstructed flow
- Investment cast 2-piece body
- Blow-out proof stem
- Compact assembly
- Locking device available
- Adjustable stem packing
- 100% factory tested
Materials
- Body & End Cap: Brass
- Seals & Seats: PTFE
- Ball: Chrome Plated Brass
- For Lead Free Brass see the 282LF series
End Connections
- Female NPT Threaded (1/4" to 4")
- Male x Female NPT Threaded (1/4" to 1")
- Solder (1/2" to 4")
Temperature Range:
- up to 366°F
Pressure Range:
- 29inHg vacuum to 600 PSIG WOG
- 29inHg vacuum to 150 PSIG WSP
- NON-Drinking water plumbing
- Rainwater harvesting & storage
