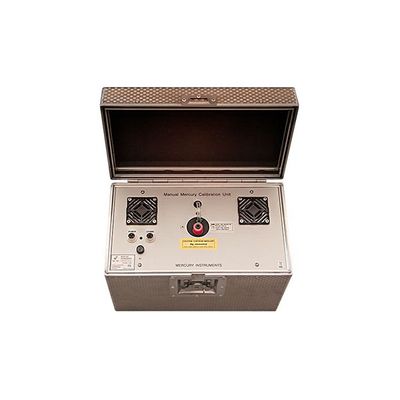

Mercury - Model CalSet -Manual Calibration Set for UT-3000
FromENVEA
This accessory meant for manually calibrating the UT-3000 Mercury Ultratracer. The calibration unit is connected to the UT-3000 Ultratracer. With a special syringe a defined volume of mercury containing gas is drawn from the calibrator and injected into the calibration port of the UT-3000. After entering the volume of the injected gas, the UT-3000 will automatically calculate the mercury mass from the volume injected and the calibration cell temperature.
Most popular related searches
mercury container
ambient gas
temperature sensor
mercury calibration unit
gas calibration
calibration gas generation
temperature sensor precision
platinum temperature sensor
mercury calibration
temperature calibrator
- Easy to operate
- High precision temperature sensor (Pt 100)
- Thermoelectrically cooled
- Purity of contained Hg: 99,999999%
- Accuracy of T-sensor: 0,01 °C
- Power supply: 230 VAC / 50 Hz (110 VAC / 60 Hz option)
- Power consumption: 30 VA
- Dimensions (W x H x D): 35 x 20 x 25 cm
- Weight: approx. 4.7 kg
- Power supply: 230 VAC / 50 Hz (110 VAC / 60 Hz option)
- Power consumption: 30 VA
- Dimensions (W x H x D): 35 x 20 x 25 cm
- Weight: approx. 4.7 kg
- Our products are manufactured according to the ISO 9001 quality regulations.
- CE approved
