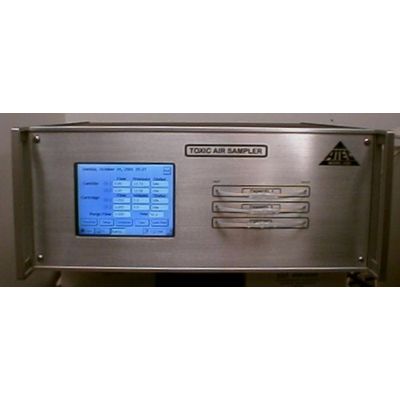

ATEC - Model 2200 -Manual Carbonyl Air Sampler System
The Model 2200 manual is designed for users looking to gain a comprehensive understanding of this product`s specifications and operational capabilities. This manual provides detailed instructions on the setup, operation, and maintenance of the Model 2200, highlighting its key features and functionalities. Typically, the Model 2200 is a high-precision equipment used in technical applications, and this document offers insights into its advanced design and engineering. It covers critical areas such as system configuration, diagnostic procedures, and troubleshooting tips, supporting users in maximizing the efficiency and performance of the product. With its technical focus, it serves as an essential guide for technicians and engineers who need to ensure optimal use and longevity of the Model 2200.
- On screen Standard Operating Procedures provide step-by-step guidance during setup
- Automatic leak checks prior to the start of sampling
- Cartridge flow rate and volume logged during sampling
- Cartridge flow rate monitored for out of tolerance conditions
- Auto zero of mass flow controllers
- Software calibration of mass flow controllers
- Temperature controlled ozone scrubber
- Manual leak check procedure during setup
- Hexavalent chromium (Cr6) filter upgrade available
- Duplicate sampling with independent mass flow controllers (4 max)
- Idle ports and collocated channels can be programmed while sampling
- SVGA color touch screen with ARM microprocessor
- Optional label printer to provide QA labels for canisters
- Data download to jump drive
- Programmable purge for main unit and expansion units
- Manual mode operation to activate all components
- Expansion capability of up to 16 cartridges
