ATEC - Model 8001 -Manual Device for Canister Sampler System
The Model 8001 is a manual device known for its reliability and efficiency in its designated application. It`s designed to provide robust performance requiring minimal maintenance. The machinery features an intuitive manual interface, allowing users to operate without the need for complex programming or automation. This makes it suitable for operations where direct interaction and control is critical, particularly in environments where automated or electrical power solutions might be unsuitable. The product is engineered to withstand demanding conditions, offering durability and longevity. Technicians and engineers may appreciate its straightforward configuration, enabling swift integration into existing workflows. Its design ensures adaptability across various sectors, highlighting the product`s versatility in diverse industrial applications.

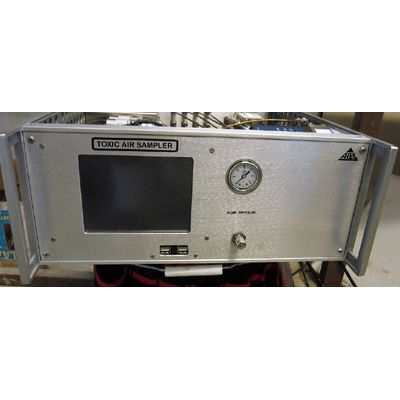

The Model 8001 Canister Sampler is a self-contained air sampling instrument that has been designed to collect air samples into canisters for specified periods. The flow rates into the canisters are regulated using electronic mass flow controllers. A single board internal computer with a color touch screen display provides flexible scheduling, error checking, and data logging capabilities. The sampler can be configured for either sub-ambient or pressurized canister sampling as well as simultaneous collocated sampling of canisters using independent mass flow controllers. Multi-port expansion units can be added to increase the number of canister samples.
- Manual leak check procedure during setup
- Automatic leak checks prior to the start of sampling
- Canister flow rate and pressure logged during sampling
- Canister pressure and flow monitored for out of tolerance conditions
- Auto zero of mass flow controllers
- Software calibration of mass flow controllers and pressure transducers
- On screen Standard Operating Procedures provide step-by-step guidance during setup
- Expansion capability of up to 16 additional canisters
- Duplicate sampling with independent mass flow controllers (Max 4 independent channels)
- Auto sense feature only use canisters that have not been sampled
- Sub-ambient or pressurized sampling
- User selectable final canister pressure
- SVGA color touch screen with ARM microprocessor
- Optional label printer to provide QA labels for canisters
- Data download to jump drive
- Idle channels can be programmed while sampling
- Programmable purge for main units and expansion units
- Specially designed inlet to minimize condensation in sampling lines
- Manual operation to activate all components
