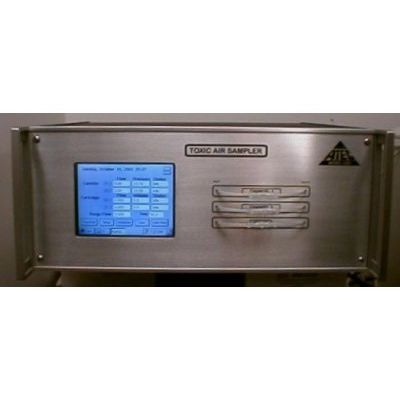

ATEC - Model 2200 -Manual Device for Canister Sampler System
The Model 2200 Manual is likely a robust and versatile tool designed for technical applications requiring precise manual operations. While exact specifications are not provided, manuals like the Model 2200 typically enable users to handle intricate tasks with accuracy. It may be part of an equipment line intended for specific industrial or field use where manual intervention is necessary. The design is likely optimized for ease of use, ensuring reliable performance even in demanding scenarios. Its utility can span various sectors, including engineering, manufacturing, or other domains where manual control and nuanced task handling are essential. In such environments, the Model 2200 Manual would be an essential tool aiding technicians, engineers, or operators to perform detailed work effectively.
- Manual leak check procedure during setup
- Automatic leak checks prior to the start of sampling
- Canister flow rate and pressure logged during sampling
- Canister pressure and flow rate are monitored for out of tolerance conditions
- Auto zero of mass flow controllers
- Software calibration of mass flow controllers and pressure transducers
- On screen Standard Operating Procedures provide step-by-step guidance for operators during instrument setup and post sample data retrieval
- Expansion capability of up to 16 cartridges or canisters
- Duplicate sampling with independent mass flow controllers (maximum of four independent channels)
- Auto sense feature only uses canisters that have not been sampled
- Sub-ambient or pressurized canister sampling
- User selectable final canister pressure
- ¼ VGA color touch-screen with XScale RISC microprocessor
- Optional label printer to provide QA labels
- Data download to jump drive
- Idle channels can be programmed while sampling
- Programmable purge for main units and expansion units-flushes entire sample path prior to sampling.
- Temperature controlled ozone scrubber for carbonyl sampling
- Specially designed inlet to minimize condensation in sampling lines
- Manual mode operation to activate all components
- Hexavalent chromium (Cr6) filter upgrade available
