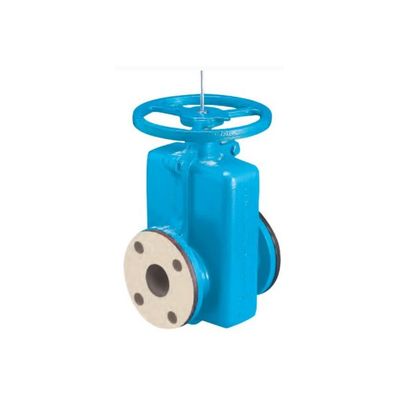

Flex-Valve - Model Series 2100 -Manual Pinch Valve

Enclosed body design. Conforms to ANSI B16.10 lengths, making it interchangeable with Gate, Plug, and Ball Valves. Cost effective. Dual pinching mechanism closes from top and bottom to center. Position indicator standard. 100% full port eliminates clogging and turbulence while minimizing pressure drops. Vertical enclosure split line for complete accessibility to all internal components. Nonrising handwheel and stem. Operating torques will remain constant over time, even when left open or closed for years. Prevents scaling buildup and clogging with its unobstructed design and flexing action. Rubber sleeve is the only part exposed to the process fluid. Drop-tight bi-directional closure, even on solids. Flanges tapped for ANSI 125/150 lb.. Full flat-faced integral elastomer flanges. Can be installed in any position. Positive opening device standard. No packing, gaskets or seals to maintain. The isolation valve of choice for most wastewater treatment plants and many light industrial plants
