Waircom MBS - Model Series M -Manually and Mechanically Actuated Mini Valves

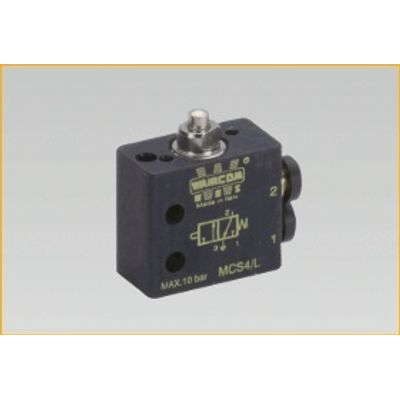

Minivalves series "M" are produced in the 2/2 and 3/2 pneumatic functions in both side and bottom ported versions, with push-in fittings on body valve for pipe Ø 4 mm or M5 threaded connections; the version G1/8" bottom ported is also available. Thanks to the suitable adapter types MCS-SA and MCS-SAD these minivalves support the "BRETER" Ø 22 mm actuators for panel mounting. The same actuators can control 1 or 2 minivalves, thus it`s possible to obtain the 3/2, 5/2, 5/3 open centre and the 5/3 pressure centre pneumatic functions.
