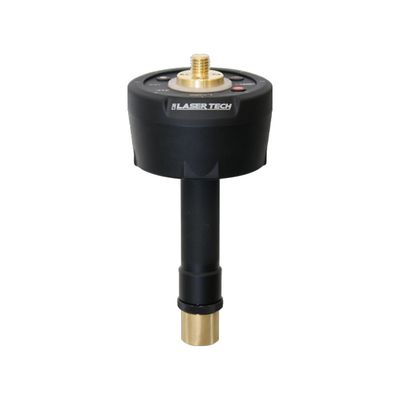

MapStar® TruAngle II® - Angle Encoder
The MapStar® TruAngle II® encoder precisely calculates a turned horizontal angles that can be referenced to any desired point or direction. This survey-pole-mounted angle encoder works with TruPulse® products to provide high-accuracy X, Y, and Z coordinates for a complete 3D mapping system immune to local magnetic interference. The intuitive user interface complements this next-generation angle encoder`s advanced performance and stronger durability with an all-new, feedback-driven user experience. Add your preferred GNSS receiver to map assets with a TruPulse rangefinder. Introduce the Distance-Angle workflow to your toolkit and experience a new world of offset positioning possibilities; map assets within a clear line of sight without occupying their physical location, avoid dangerous terrain and private property, reduce traverse time, and overcome signal issues.
- Integrates with next-generation TruPulse i-Series devices (TruPulse 200i and 360i) and Bluetooth-compatible legacy TruPulse products (TruPulse 200, 360, and 360R)
- 3-button intuitive interface decreases field time and aggravation
- Provides professionals with the needed horizontal accuracy unaffected by magnetic interfaces
- Level Aid Alert, to obtain the highest degree of positional accuracy. Ultra bright LEDs to indicate when the unit is level or over the level limit. This is to maintain accuracy with horizontal angle measurements.
- Mounts easily on different set-ups and easily integrates into a split GPS Pole with survey tripod mounting options
- Modular design allows you to pivot the laser rangefinder a full tilt +/- 90 degrees while maintaining the rotary encoder level.
- Withstands harsh conditions with a rugged, weatherproof IP56 rating. Holds up to everyday uses with an aluminum machined housing with a rubber bumper for added protection.
- Battery: Li-ion Rechargeable, Removeable/Removable ; 12hrs Continuous Use Able to recharge while installed (unit still functionable) or out of the unit.
- BLE module is compatible with a multitude of devices (iOS and Android™).
- Horizontal Angle Accuracy: ± 0.1°
- Horizontal Angle Range: 0° to 359.99°
- Horizontal Angle Resolution: 0.01°
- Tilt Accuracy: Maintains ±0.3º accuracy up to 10º tilt* | *Nominal Calibration Angle Tolerance is 95% level of confidence under normal test conditions at a temperature of 23º C and Barometric Pressure of 101kPa
- Wireless Communication: Bluetooth Low Energy (LE): Android & iOS compatible.
- Temperature Range: -20° to +50° C (-4° to +122° F)
- Battery Pack: Li-ion Rechargeable, Replaceable/Removable; 12hrs Continuous Use
- Environmental: Weather proof IP56 rating.
- Mount: 5/8″ threads: Top Male, Bottom Female
- Leveling: Level Aid utilizing Ultra bright LEDs (bubble level) to indicate when the unit is level or over the level limit.
- Size: Total Height 240.3 mm (9.46 in) Mounted Height 225.0 mm (8.86 in) Width / Diameter 114.3 mm (4.5)
- Weight: 1,270 g (2.8 lbs)
