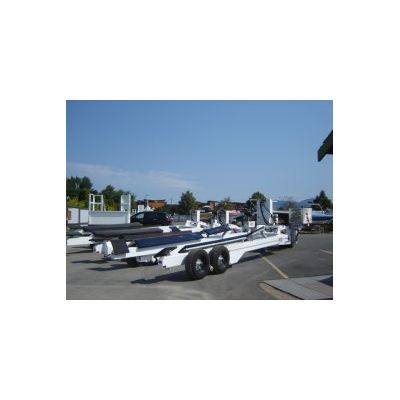

Kropf - Model SP-4 -Marine Hydraulic Self-Propelled Trailer
Capacity (size): Powerboats to 28` LOA; Cradled sailboats to 30` LOA; Capacity (weight): 8,000 lbs off-road; 8" x 8" x .250" HSS steel tube frame; Integral hydraulic front-end power unit; Power: 24 HP Honda; 90 degree steering; Full hydrostatic drive with dynamic breaking (multi-wet-disk parking brake); Variable speed to 7 MPH; Single lever joy-stick control; Full engine instrumentation; Fixed width frame (non-expanding) with 64" clear inside width; Hydraulic lift - wheel and tongue lift with frame heights to 40"; Pilot operated safety lock-valves on main frame lift; Hydraulically operated rear keel support strap.
Most popular related searches
pilot operated safety valve
hydraulic lifting
hydrostatic drive
hydraulic cylinder
polyurethane coating
epoxy coating
Standard Capacities & Features
- 4 adjustable powerboat pads; 2 telescopic cradle bars with fixtures
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Walking beam suspension
- Rear Tires: 9.00 x 14.5 bias ply
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
Optional Equipment
- Custom colour choice - 189 colors to choose from
- Wireless remote control
- Stainless steel hose ends & fittings package
- Hot dip galvanized frame and hubs
- Hydraulic 4-arm package for handling non-cradled sail boats
