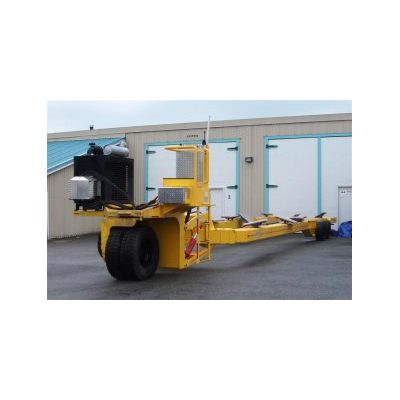

Kropf - Model SP-40 -Marine Hydraulic Self-Propelled Trailer
Capacity (size): Powerboats to 60` LOA; Cradled sailboats to 62` LOA, Capacity (weight): 80,000 lbs, 12" x 12" x .500" HSS steel tube frame, Integral hydraulic front-end power unit, Power: 85 HP CAT Diesel, 90 degree steering, Full hydrostatic drive with dynamic braking (multi wet-disk parking brake), Variable speed to 6 MPH, Single lever joy-stick control, Full engine instrumentation, Hydraulic expanding width frame (expands from 84" to 114" inside).
Most popular related searches
pilot operated safety valve
hydraulic lifting
hydrostatic drive
hydraulic cylinder
polyurethane coating
epoxy coating
Standard Capacities & Features
- Hydraulic lift - wheel and tongue lift with frame heights to 62"
- Pilot operated safety lock-valves on main frame lift
- Hydraulically operated fore and aft keel support strap
- Rear 4-pad equalizing rocker system
- 12 adjustable powerboat pads; 3 telescopic cradle bars with fixtures
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Walking beam suspension
- Tires: Front - 315/80-22.5" 20 ply drive tires / Rear - 28" premium wide-trac solid Titan tires
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
Optional Equipment
- Custom colour choice - 189 colors to choose from
- Wireless remote control
- "L" cradle arms for more efficient cradle moving - Set of 6
- Stainless steel hose ends & fittings package
- Hot dip galvanized frame and hubs
- Hydraulic arm package for handling non-cradled sail boats - 4 arm or 6 arm
- Rear wheel drive assist
