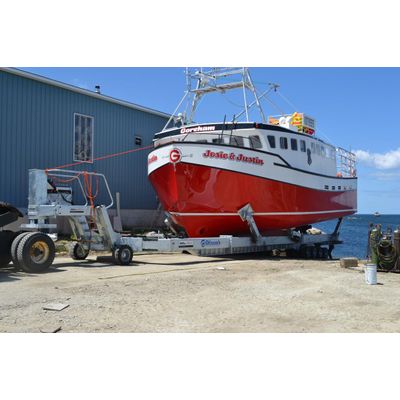

Kropf Industrial - Model Y-100 -Marine Hydraulic Yard Trailer
The Y-100 Marine Hydraulic Yard Trailer by Kropf Industrial is engineered for efficient transport and maneuvering of boats within marine yards. Designed to handle substantial weights, it boasts a load capacity of 160,000 lbs and can accommodate boats ranging from 30 to 80 feet. This robust trailer is part of a diverse lineup, including models with varying capacities, ensuring suitable options for different marine operations. Constructed with durability in mind, it integrates advanced hydraulic systems for seamless lifting and lowering of vessels, optimizing both safety and operational efficiency. Kropf Industrial's expertise in the field ensures that the Y-100, among other models, meets the rigorous demands of marine environments, providing dependable service in boat transportation and handling.Most popular related searches
pilot operated safety valve
hydraulic lifting
hydraulic cylinder
marine environment
metal coating
epoxy coating
marine boat
polyurethane coating
- Powerboats to 90′ LOA
- Sailboats to 92′ LOA
- Capacity (weight) – 200,000 lbs off-road
- 16″ x 16″ x .500″ HSS steel tube frame – bridged construction
- Hydraulic expanding width frame (expands from 65″ to 95″ inside the inner wheels)
- Hydraulic dolly wheel with pintle ring tongue
- Hydraulic lift – wheel and tongue lift with keel bar heights from 12 1/2″ to 42″
- Hydraulic Power: 24 HP Honda gasoline engine
- Pilot operated safety lock-valves on main frame, tongue, and hydraulic arms
- Telescopic hydraulically operated rear cross-bar
- 10 – 8″ x 8″ aluminum keel support bars
- Six – telescopic (extendable) hydraulic arms
- Forward arms pivot inward to accommodate narrow beam boats
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Walking beam suspension
- Tires: 28″ premium wide-trac solid Titan tires
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
- Load Capacity: 200,000 lbs
- Boat Length: 30` - 90`
- A: 166" - 196"
- B: 97" - 127"
- C: 29" - 64"
- D: 16` 5"
- E: 59` 6"
- F: 94` 5"
- Engine HP: 18
- Shipping Weight: 40,000 lbs
- Custom PPG colour choice – 189 colors to choose from
- Black or white decal (company name & telephone number) on both sides of unit
- Stainless steel hose ends & fittings package (includes stainless cylinder shafts)
- Wireless remote control
- Hot dip galvanized frame and components (in lieu of standard painting process)
