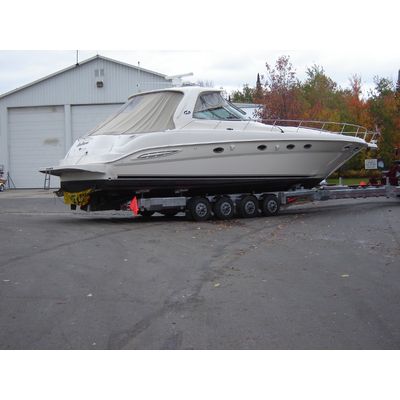

Kropf IndustrialModel Y-60 -Marine Hydraulic Yard Trailer

SHARE

The Y-60 Marine Hydraulic Yard Trailer is engineered to efficiently haul a wide range of marine vessels, offering a robust load capacity of up to 200,000 lbs and accommodating boat lengths from 30 to 90 feet. This trailer is part of a versatile series designed for different capacities and boat lengths to meet various marine handling needs. Each model, from the Y-3 to the Y-100, features a distinctive load capacity and boat length adaptability, catering to specialized requirements for transporting marine equipment. Kropf Industrial’s design emphasizes hydraulic maneuverability and durability, ensuring optimal performance and safety in marine environments. Optional equipment additions allow for further customization to optimize functionality according to specific needs.

Most popular related searches
  • Powerboats to 70′ LOA
  • Capacity (weight) – 120,000 lbs off-road
  • 14″ x 14″ x .500″ HSS steel tube frame
  • Hydraulic expanding width frame (expands from 96″ to 126″inside)
  • Hydraulic tongue with pintle ring
  • Hydraulic lift – wheel and tongue lift with frame heights to 66″
  • Hydraulic Power: 11 HP Honda gasoline engine
  • Pilot operated safety lock-valves on main frame lift
  • Hydraulically operated fore and aft keel support straps
  • Rear 4-pad equalizing rocker system
  • 12 adjustable powerboat pads
  • O-ring boss and JIC hydraulic fittings
  • Zinc coated steel hose ends and fittings
  • High strength hydraulic cylinder shafts
  • Stainless steel hardware (nuts/bolts/pins)
  • Walking beam suspension
  • Tires: 28″ premium wide-trac solid Titan tires
  • Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
  • Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
  • 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear

  • Load Capacity: 120,000 lbs
  • Boat Length: 30` - 70`
  • A: 156" - 186"
  • B: 96" - 126"
  • C: 30" - 66"
  • D: 16`
  • E: 36`
  • F: 60`
  • Engine HP: 11
  • Shipping Weight: 22,000 lbs
  • Custom PPG colour choice – 189 colors to choose from
  • Black or white decal (company name & telephone number) on both sides of unit
  • Electric start
  • Stainless steel hose ends & fittings package (includes SS cylinder shafts)
  • Wireless remote control
  • Hydraulic fifth wheel gooseneck (2″ SAE pin)
  • Hot dip galvanized frame and components (in lieu of standard painting process)
  • Hydraulic 6 arm package with rear arm swivel for handling non-cradled sail boats
