Greenbank - Model MF 3000 -Mass Flow Measurement

FromGreenbank Energy Solutions, Inc.

SHARE

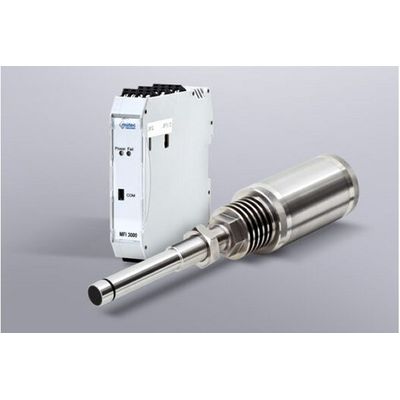

The MF 3000 is equipped with the newest microwave technology and is used to measure the flow of quantities of solids in metallic pipes. All powders, dust, pellets and granules can be measured reproducibly, from a few kg/h up to several t/h. The MF 3000 is suitable for inline measurements in pneumatic pipelines or in free-fall.

Most popular related searches

mass flow monitoring

flow monitoring

pneumatic conveyor

process monitoring

dissolved oxygen monitoring

The measurement process of the MF 3000 is based on the physical principle of the Doppler Effect. The mass flow-rate is determined by evaluating the frequency and amplitude changes during the measurement process. Resting particles, such as deposits, do not influence the measurement.

Attributes:

For all pneumatic conveying and free-fall processes
For all bulk materials, from a few kg/h to several t/h
IN-LINE measurement without weighing
No fittings in the pipe; flush interior installation
Simple, low-cost installation & start-up
Adjustable sensitivity for very small and very large pipe diameters
Galvanic separated RS485 interface for PLS connection
Mini-USB Port
Independent of static charging
Limit-value monitoring with alarm output
Sturdy, stainless-steel construction, abrasion- and maintenance free
MF3000-D for high pressure
MF3000-T for high temperatures
