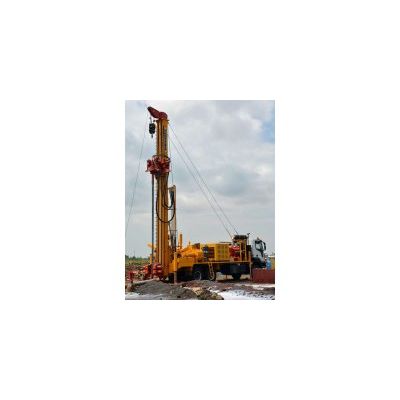

Massenza - Model MI50 -Drilling Rig
Drilling rig for water wells, mineral exploration, geothermal applications, coring, seismic. It can drill up to 1100 m and it is possible to mount a mud pump or a high capacity compressor depending on the various needs. The rig can be mounted on truck or on semi-trailer (in this case it is possible to handle 9 m drill pipes). Its robust construction does not prejudice its versatility. The rig can be used with all the main drilling methods: direct and reverse circulation by mud and by down the hole hammer. It can be operated remotely.
WORK METHODS
- Rotation with direct circulation
- Nucleus destruction with bleeding by water, mud and foam
- Rotation with down the hole hammer
- Reverse circulation with down the hole hammer
- Reverse circulation
- Coring
POWER PACK
Engine power from 394 Hp (294 kW) to 831 Hp (620 kW)
FUEL TANK
Capacity from 300 litri (79 gal) to 600 litri (158 gal)
SLIDING MAST (OPTIONAL): stroke 2250 mm (7 ft 5”)
MAST: max stroke of rotary head 10,6 m (34 ft 9”)
Pull up 50000 daN (112400 lbf) – pull down 23300 daN (52380 lbf)
ROTARY HEAD
model TM50: max torque 27450 Nm (17333 lbf•ft) - max speed 150 Rpm
model TM20CR12: max torque 10200 Nm (7523 lbf•ft) - max speed 1200 Rpm
WINCH
Standard: max line pull 8000 daN (17986 lbf)
Optional: max line pull 10000 daN (22045 lbf)
Wire-line: tiro diretto max 1300 daN (2922 lbf) – 1360 m (4462 ft) of rope – 93 m/min (305 ft/min)
DOUBLE HYDRAULIC CLAMP
model MS520: max passagge Ø 520 mm (20”)
