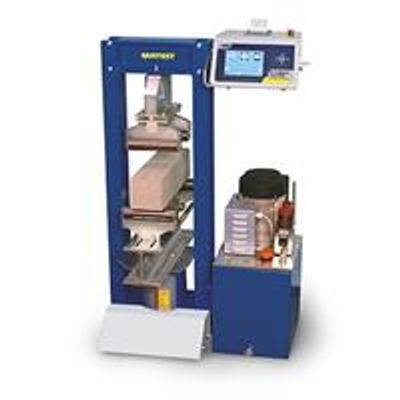

Matest - Model 150 kN -Hydraulic Flexural Testing Machine for Material Strength Analysis

Max. vertical daylight between upper/lower rollers: 160 mm. Rollers dimensions: 40x160 mm. Complete with 4 adjustable and articulated rollers. Distance of lower rollers adjustable from 100 to 455 mm. Distance of upper rollers adjustable from 40 to 155 mm. Gauge diameter 250 mm with 0.5 kN divisions. Max. ram travel 50 mm approx.. Calibration accuracy: class 1.0. Hydraulic device to stop the piston stroke at its max excursion. Power supply (motorized models): 230V 1ph 50Hz 750W. Dimensions: 540x460x960 mm. Weight: 180...240 kg.
